How to set a DMX address for stage lighting equipment?

I'm frustrated when my lights do not sync on stage. I felt stuck. Now I will share the simplest way to fix DMX address issues.

To set a DMX address, identify the required channel range for your fixture. Configure the address using either DIP switches or an onboard menu. Assign unique start addresses to each fixture to avoid overlap. Always verify power, wiring, and termination. Then confirm correct functionality through your lighting console.

I discovered these steps while working on a crowded stage. I wanted a fast system that would avoid confusion. I realized that understanding the basics helped me set up DMX addresses without stress. Let me show you more now.

What is a DMX address?

I worried that I would never understand DMX addresses. The concept seemed mysterious. I decided to learn it step by step to reduce my anxiety.

A DMX address is the first channel your lighting fixture responds to in a DMX universe. Each fixture’s address must be unique, and the number of channels it needs depends on its features. This address ensures the console sends commands to the correct fixture without conflicts or overlapping signals.

I once had trouble linking multiple fixtures on my stage. I discovered that the DMX512 protocol¹ transmits data in a unidirectional stream where each channel corresponds to a specific control parameter. If I have five fixtures, each requiring seven channels, I need enough space for all thirty-five channels. That means each fixture must have a distinct start address². I cannot overlap channels or the lights will receive the same commands at once.

I learned that a DMX universe³ can handle up to 512 channels. This means I must place each fixture carefully. When a fixture says it needs eight channels, I start that fixture at address one, for example, and it will occupy channels one through eight. If I add another fixture that also needs eight channels, I can set it to address nine. That way, there is no overlap.

This structure keeps my rig organized. I also note that some fixtures have different channel modes, like a small mode or an extended mode. I check the manual to see how many channels it needs. Then I plan my addresses accordingly. If I have many lights, I rely on a diagram to keep track of start addresses. In the table below, I show a simple layout for three fixtures.

Sample DMX Address Layout

Fixture	Channels Needed	Start Address	End Address
Fixture A	8	1	8
Fixture B	8	9	16
Fixture C	7	17	23

This table illustrates how I avoid collisions by assigning each device a unique range. Understanding these basics is key to preventing chaos during live events.

How to set a DMX address step by step?

I felt lost when I first tried to set addresses. The small DIP switches⁴ and digital menus confused me. I needed a simple plan to avoid errors.

Begin by deciding how many channels your fixture needs. Locate the DIP switch table or the digital menu. Flip the switches to the correct binary combination⁵, or select the address in the menu. Save settings, then test your fixture. Repeat for each device to prevent conflicts.

I will outline two main methods I use when setting DMX addresses: DIP switches and digital menu systems. With DIP switches, each switch represents a binary value. Switch one is one, switch two is two, switch three is four, switch four is eight, and so on. If my start address is thirteen, I toggle switch one (value one), switch three (value four), and switch four (value eight) because one plus four plus eight equals thirteen.

I recall feeling overwhelmed the first time I saw these tiny switches. I learned to double-check each position under good light. Sometimes I used a magnifier. That prevented me from flipping the wrong switch by accident. After I set the switches, I turned the fixture on and tested it with my console.

The digital menu method can feel simpler. Most modern fixtures have an LCD panel with arrow buttons. I press the menu button and look for “Addr” or “Address.” Then I adjust the number with up or down arrows until I reach the desired start channel. I press enter or confirm. The fixture stores the setting internally.

Both methods achieve the same goal. I prefer the digital menu because it is less prone to human error. But some budget fixtures only have DIP switches. In that case, I take my time to carefully match the binary code so I do not cause conflicts on the DMX line.

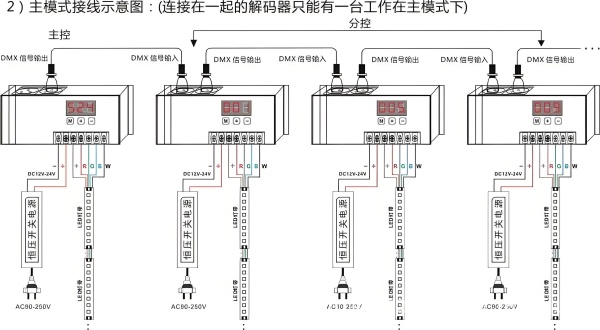

Common mistakes and troubleshooting?

I made many errors when I began. I found that a few simple checks prevented headaches. Now I am more confident in avoiding these common pitfalls.

Overlapping addresses⁶ cause the most issues. Proper wiring and a correct terminator resistor also matter. Another frequent error is forgetting how many channels each fixture needs. Confirm that all DIP switches or digital entries are exact. Finally, keep an updated list or diagram of each device’s address to reduce confusion.

I remember one show where two of my moving lights responded together. That happened because I forgot to change the address on the second fixture. Both lights were set to address one. They produced the same effects and caused chaos. I had to shut them down mid-show, which was embarrassing.

Another mistake I have seen is not using proper DMX cables⁷. Some people try microphone cables that do not meet the correct impedance standard. This can cause flicker or data dropouts. I learned to always use DMX-rated cables labeled with 110 ohms. I also ensure there is a terminator at the end of the chain. That is usually a small XLR plug with a resistor inside.

Another problem occurs when people exceed the 512-channel limit⁸ on a single DMX universe. If I have a large rig with many movers and LED fixtures, I might need multiple universes or an Art-Net or sACN setup. That is more advanced, but it is worth noting. I ran into trouble once when I tried to assign channels beyond 512 in a single line. Nothing responded. I had to redesign my layout.

Another overlooked area is firmware. Some fixtures have buggy firmware that misreads addresses. I found that upgrading software can solve weird issues. I also keep notes on each fixture’s settings so I can quickly see if something changed. By following a checklist, I reduce last-minute confusion and keep my show stable.

Conclusion

I shared my story, and I hope these tips help you set DMX addresses with confidence. With clear steps and organization, you can avoid confusion and deliver a smooth show.
