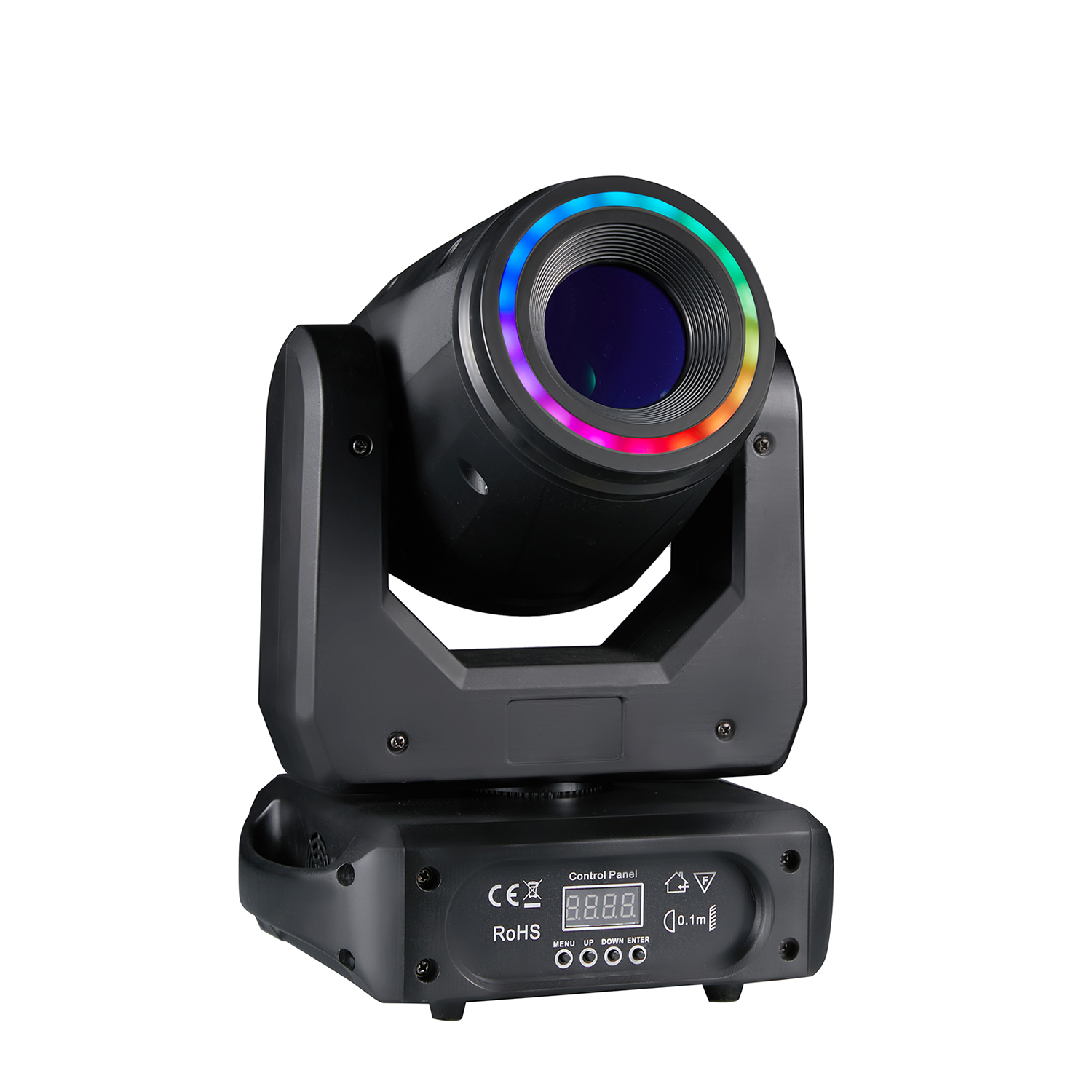

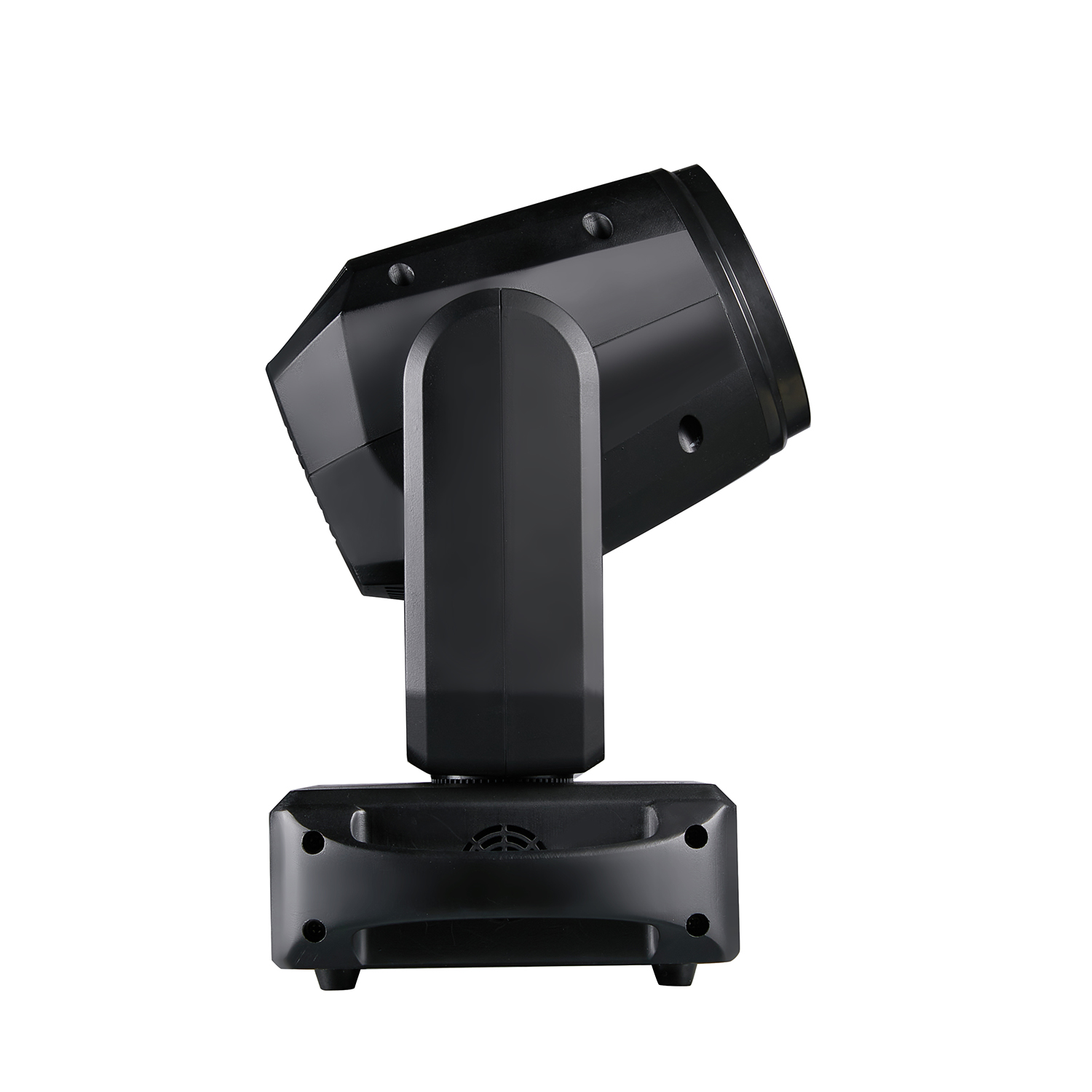

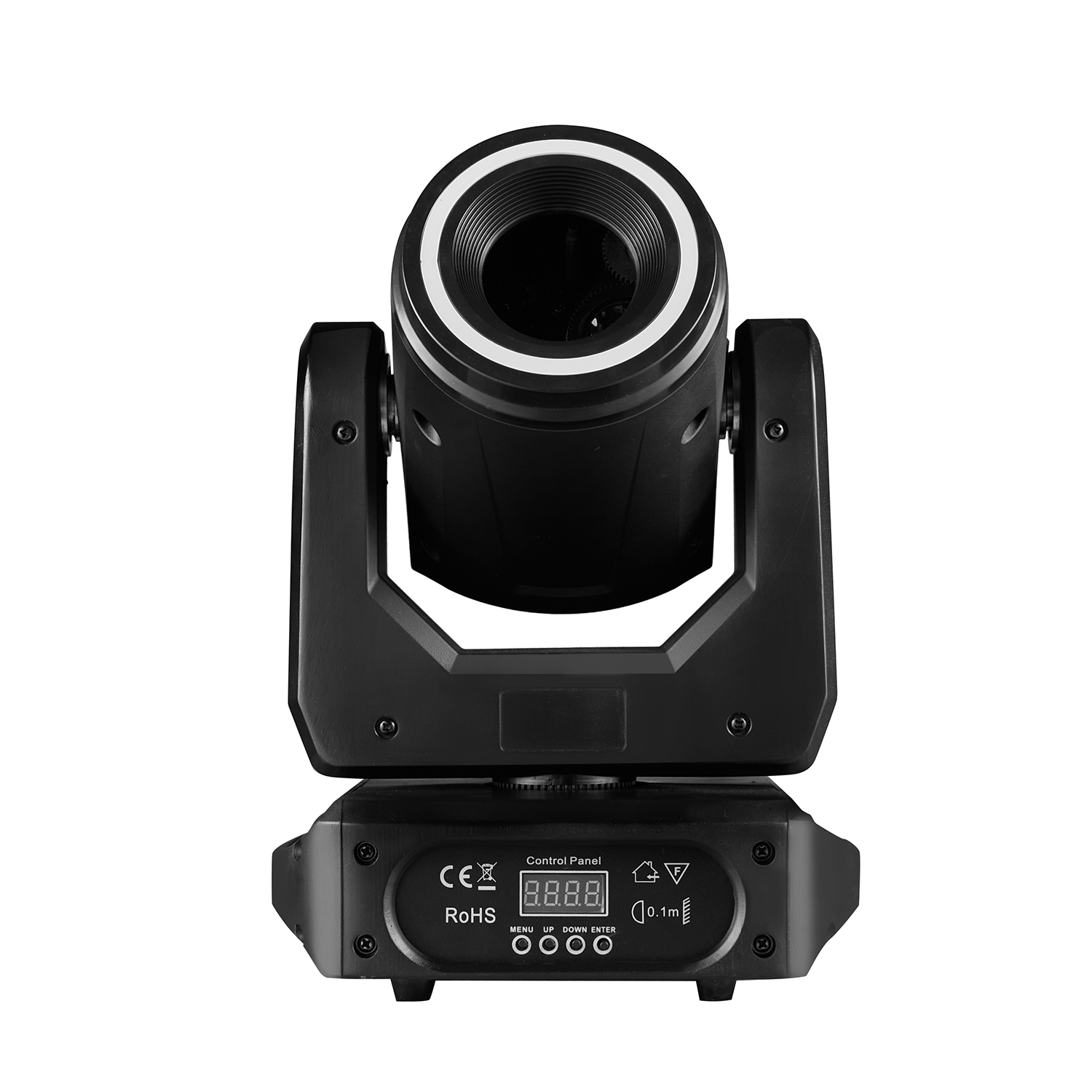

Model : MHS100

Technical Specification

-Rated voltage: AC100-240V 50-60Hz

– Rated power: 150W

– Light source: 80w white led +18 RGB flexible strips

-Heat dissipation system: Convective heat transfer, air cooling, intelligent temperature control protection

– Lens: High precision coated optical lens group

– Beam angle: 15 degrees

– Dimming: 0-100% linear dimming

-Strobe: 0-25 times/second

– Working mode: DMX512 signal/master slave/self-propelled/voice control

-Control mode: International DMX512, 14CH

-Panel display: 0.39-inch 4-digit digital tube+4 buttons

– Scanning speed: horizontal 540 º, vertical 270 º/adjustable speed

– Scanning fine-tuning: 8/16Bit

-Scanning positioning: Electronic automatic positioning

-Color palette: 7 colors+white light, with rainbow effect

– Dynamic pattern plate: 5 types of glass patterns+open, with pattern rotation effect

– Prism: 3 prisms, front and back rotation, adjustable speed

– Net weight : 4.1KG

– Gross weight: 4.7KG

-Gross weight per box: 19.8KG

-Inner box size: 33 * 25 * 27CM

-Outer box size: 52 * 35 * 56CM (4pcs/CTN)
