Mechanical Specifications:

-Housing: Die-cast aluminum

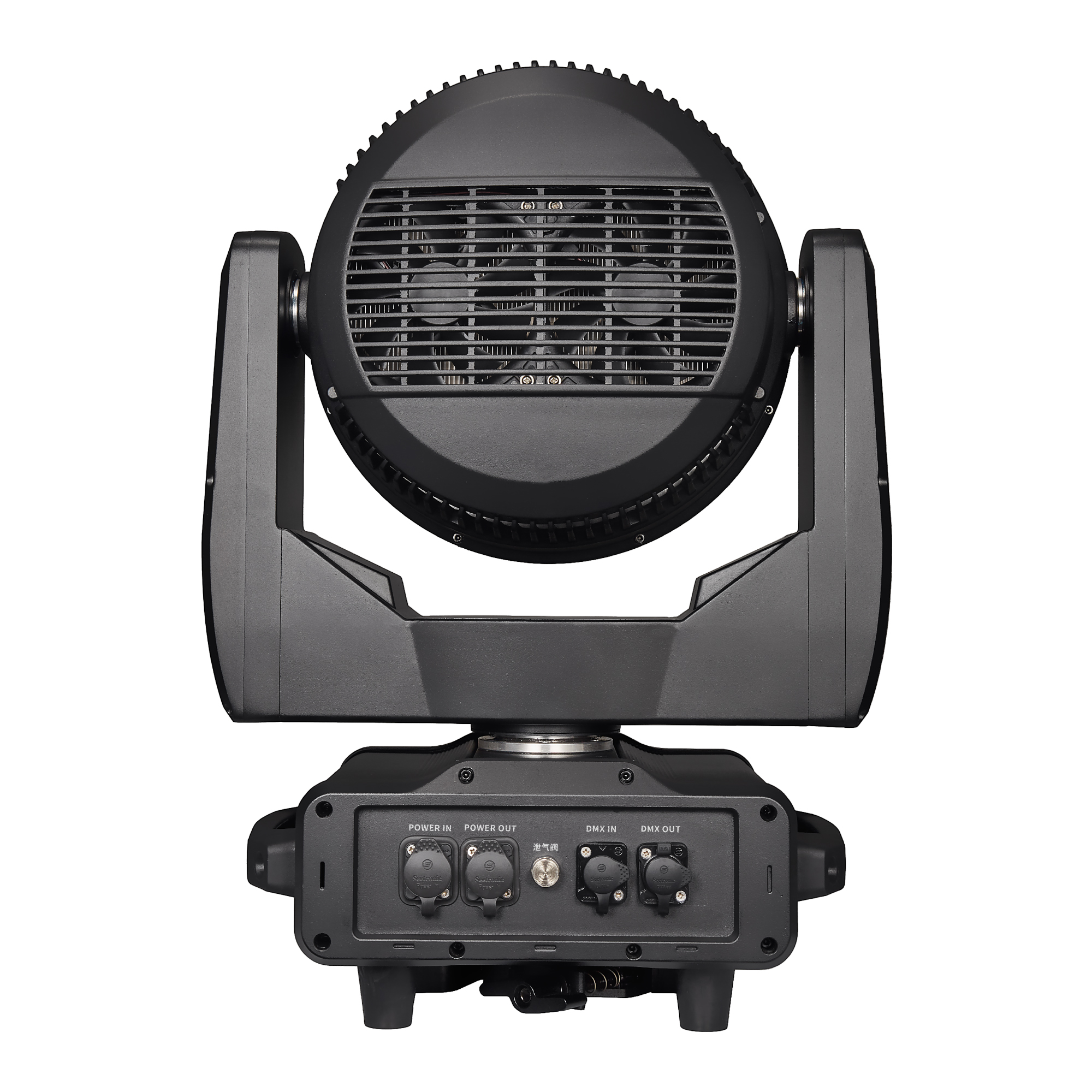

-Power Connection:  waterproof PowerCon input+output

-Signal Connection: waterproof 3 Pin XLR connectors

-Pan Movement: 540º 16 BIT

-Tilt Movement: 270º 16 BIT

-Focusing angle: 3.5 ° -50 °

-Cooling : Temperature controlled fan

-IP rating : IP65

Electrical Specifications:

-Light Source: 19pcs*40W RGBW 4in1 LEDs

-Color temperature: 2700K – 8000K

-Power supply: AC 100-240V, 50/60 Hz

-Power Consumption:600w

Control Systems:

-Display : LCD display , Display panel can be 180°flipped

-Operating modes: auto, sound, master-slave, DMX512

-DMX channels:  21/23/35/78/92/97/99

Size & Weight:

-Product size :  435*278*528mm

-Net weight: 22 kg

-Gross weight: 26 kg

-Packaging size: 56*42*64cm

-Flight case packaging size: 80*49.5*72cm, 2in1

-Gross weight: 74 kgs
