230w 7R Beam Moving Head

Categories MOVING HEAD LIGHTS, Moving Head-Beam

TECHNICAL SPECIFICATIONS:

-Power supply: AC 100-240V, 50/60 Hz

-Lamp power: 230W

-Lamp type: 7R

-Color temperature: 6000K

-Beam angle: 3.8°

-Prism: 16-facet, two-way rotation with speed control

-Gobo wheel: 17 patterns + open

-Color wheel: 14 colors + open

-Number of DMX channels: 16

-Degree of protection: IP20

-Operating modes: auto, sound, master-slave, DMX512

-Pan movement range: 540º

-Tilt movement range: 270º

-Dimmer: linear 0-100%

-Stroboscope: with flash speed control (1-13 flashes/sec.)

-Frost filter: Yes

-Focus: electronic

-Display: 1.77″ TFT color touchscreen

-DMX connectors: 3-pin XLR type (in/out)

-Power connector: powercon

-Cooling : Temperature controlled fan

-Dimensions (L x W x H) : 390 x 320 x 510 mm

-Carton dimensions: 44 x 41 x 54 cm

-Gross weight: 15.5 kg

Additional information

Exploring The Product

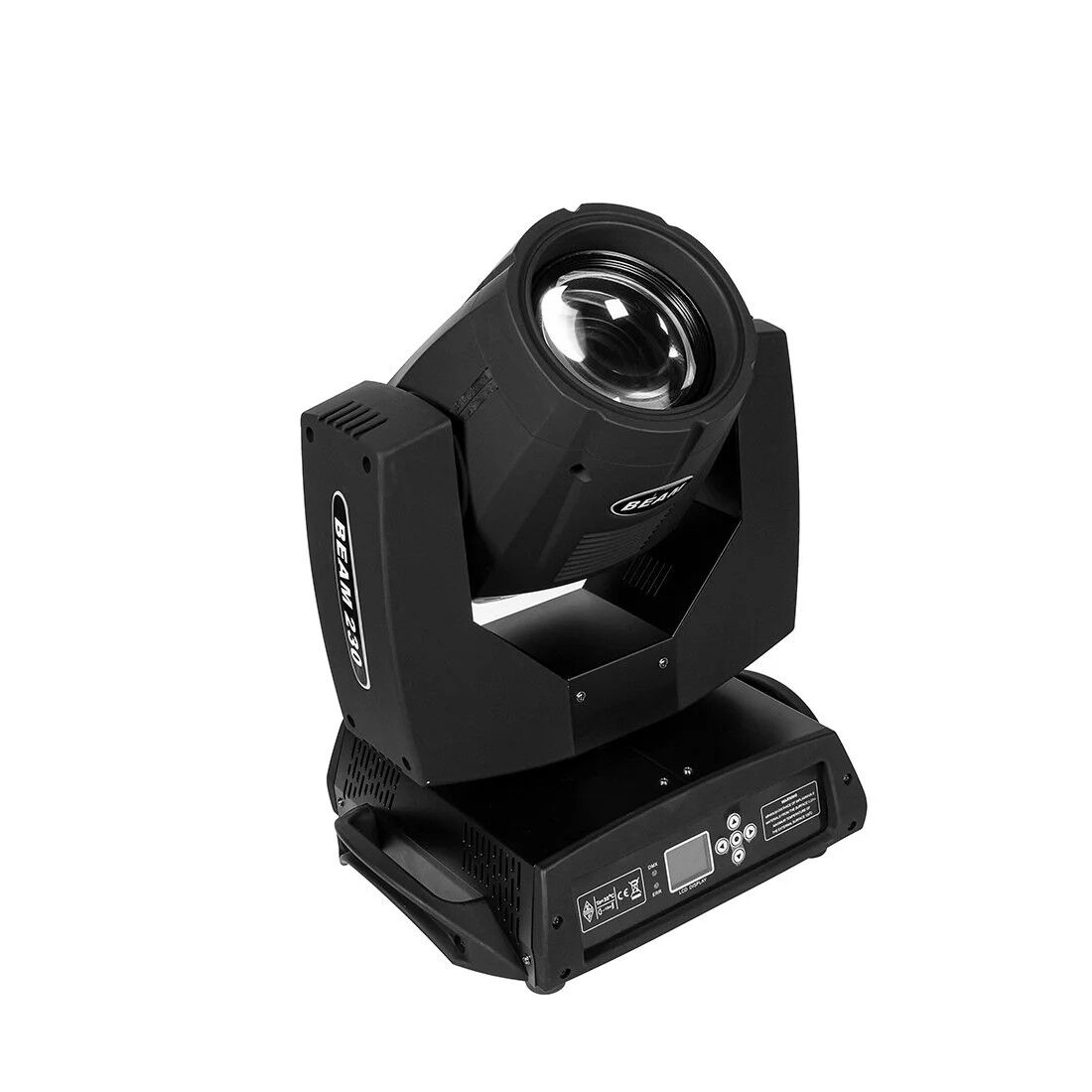

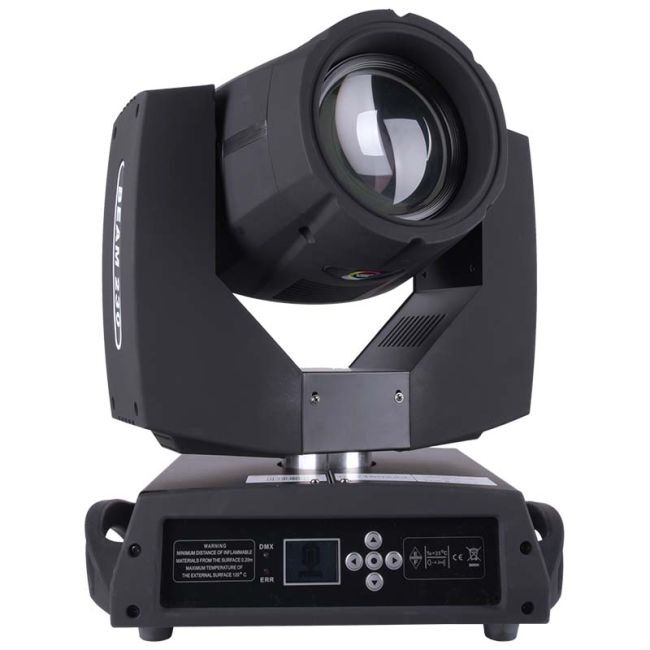

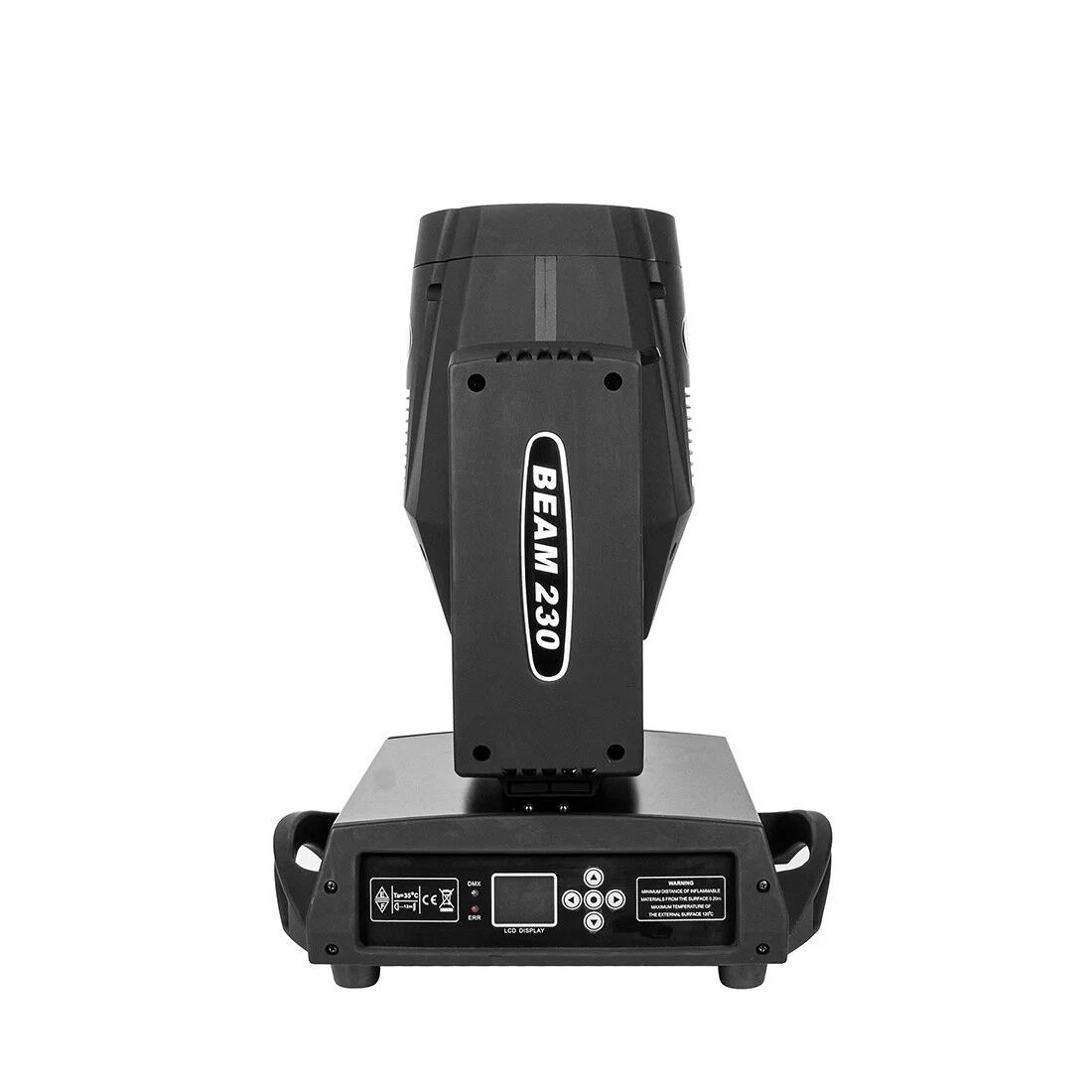

The AM 7R moving head has a very bright output due to the use of the 7R 230W high intensity discharge bulb. The moving head is equipped with a colour, frost, gobo and prism effect wheel for ultimate control; the gobo wheel is provided with 17 different gobos + open and the colour wheel with 14 colours + open. Together with the motorized 16-facet rotating prism it can create a wide range of spectacular light effects. The AM 7R moving head works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 16 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost lens, rotation prism, motorized focus and mechanical dimmer. Simple operation and easy to adjust.
