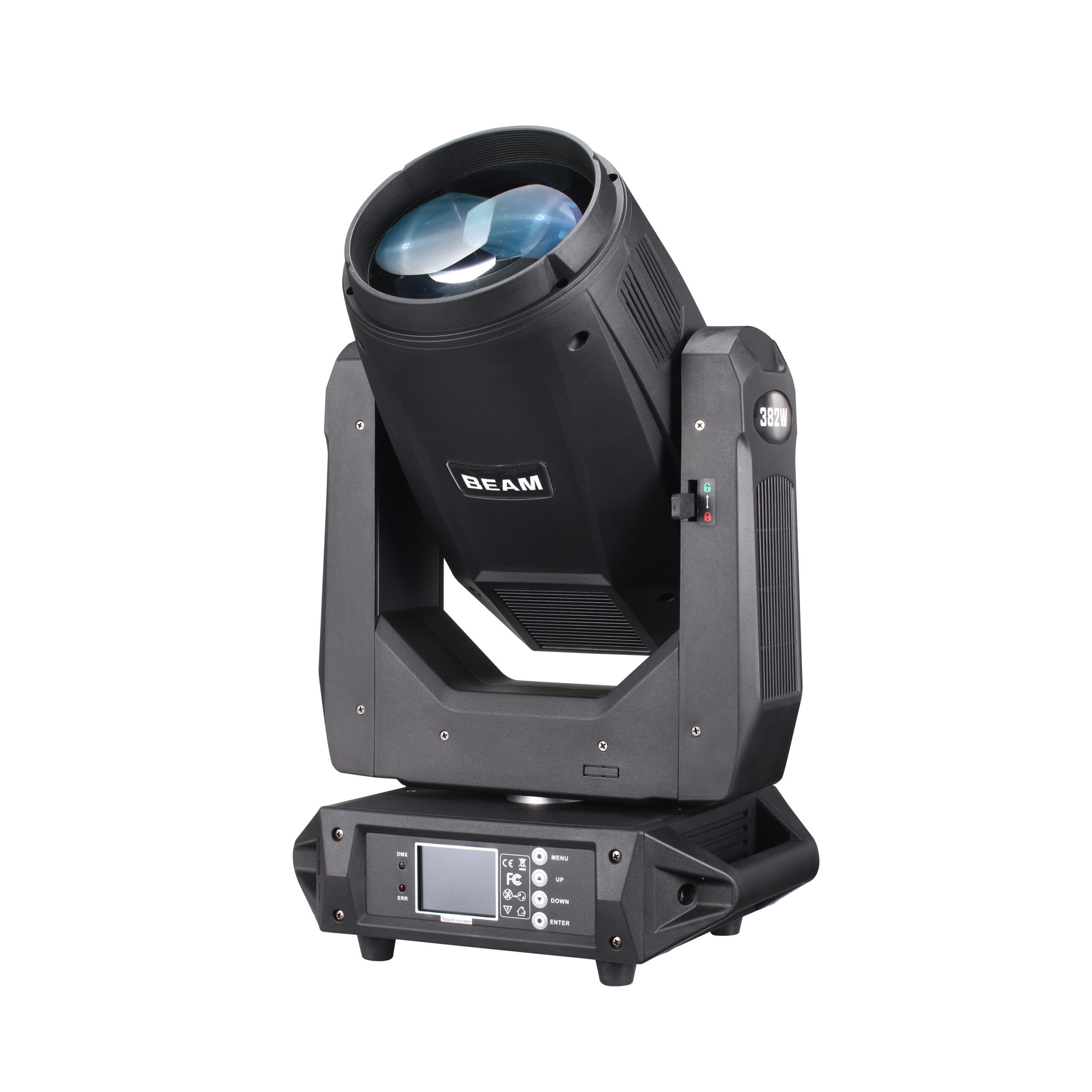

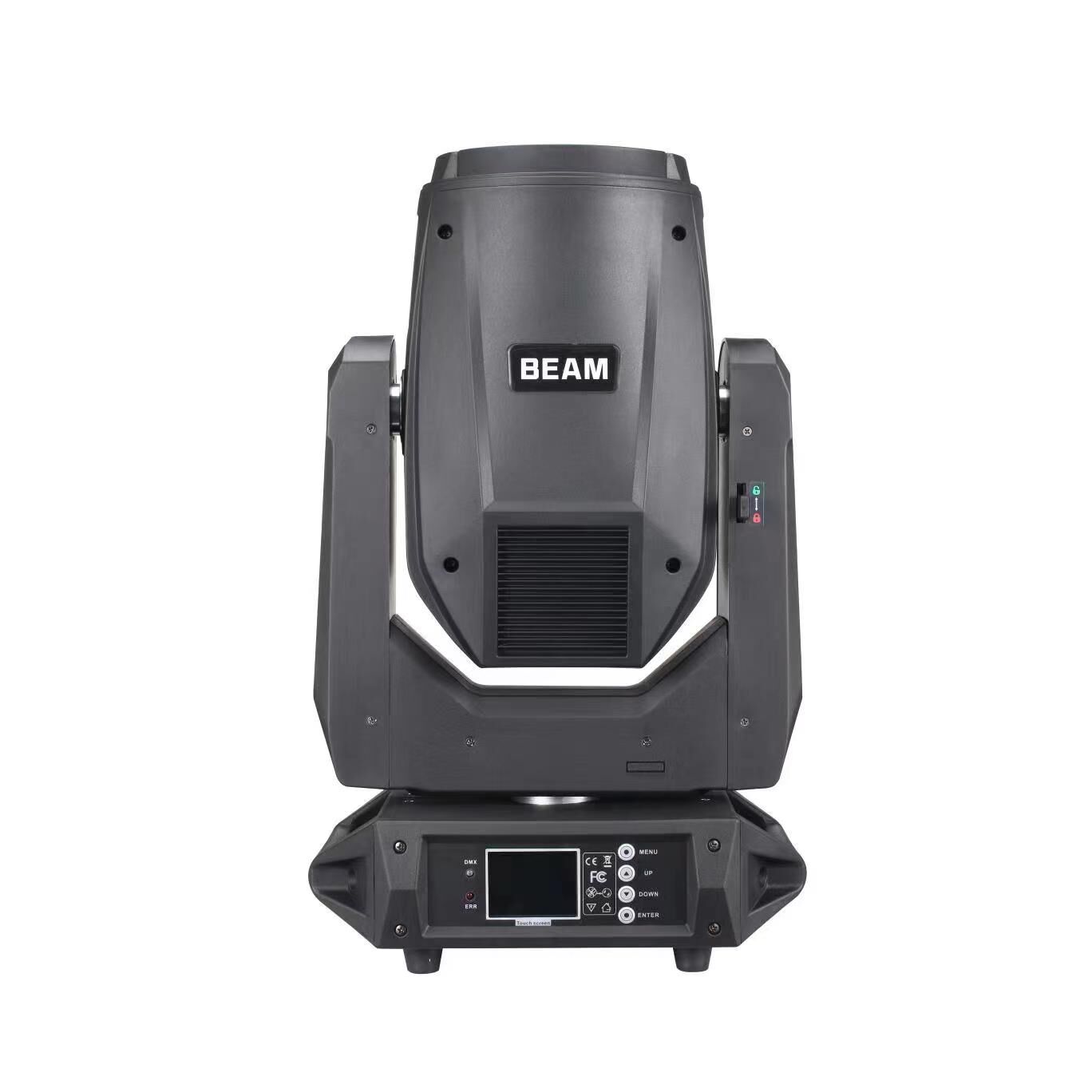

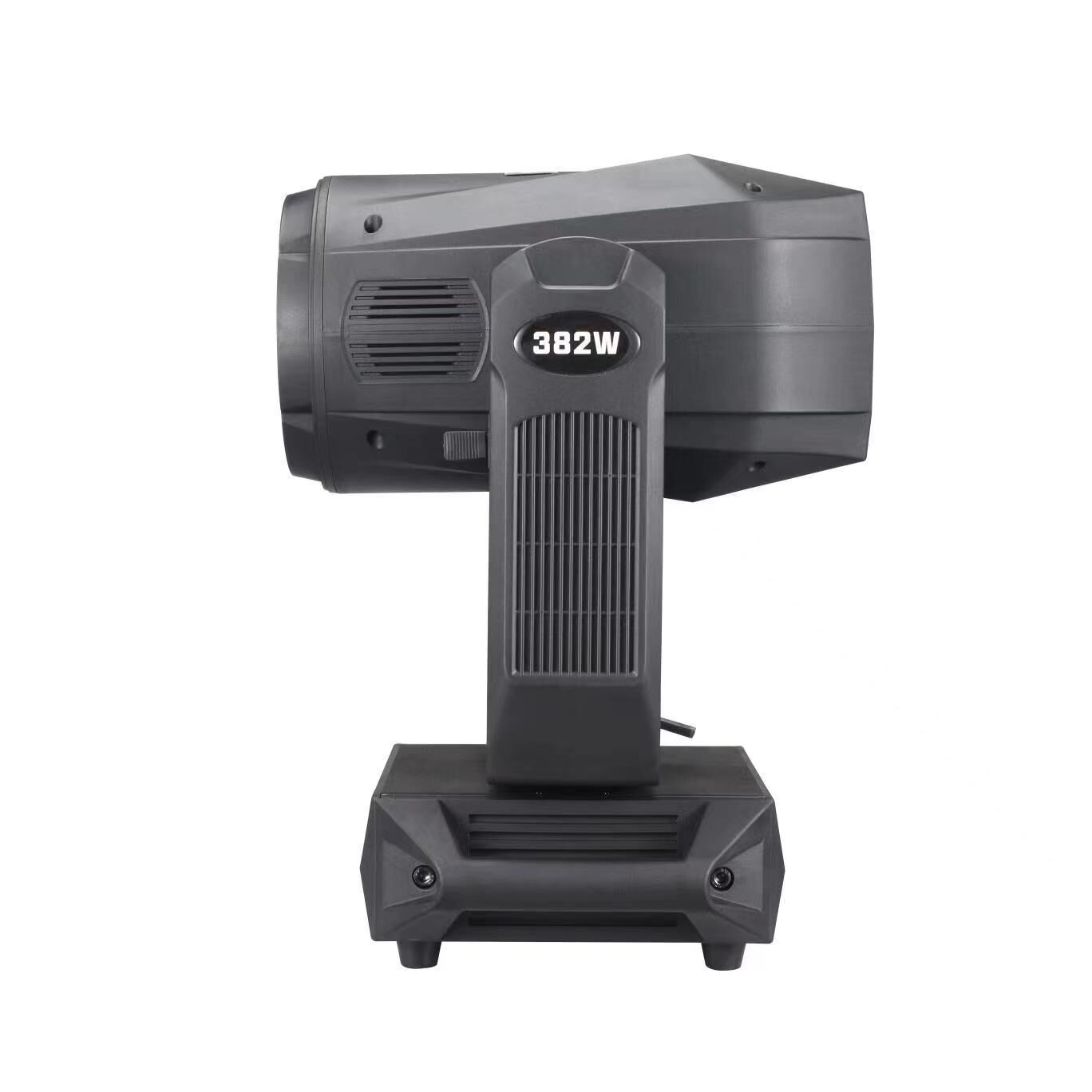

Loong 382w Beam Moving Head

Categories MOVING HEAD LIGHTS, Moving Head-Beam

TECHNICAL SPECIFICATIONS:

-Power supply: AC 100-240V, 50/60 Hz

-Light source : MSD 382W bulb

-Color temperature: 8500K

-Ballast: electronic ballast

-Gobo wheel: 13 gobo (4x glass and 9x metal gobos) + White

-Color wheel: 14 colors + white light with rotating rainbow effect

-Prism wheel 1 : 8 facet prism

-Prism wheel 2 : 6+12+24 Honeycomb prism

-Number of DMX channels: 18

-Degree of protection: IP20

-Operating modes: auto, sound, master-slave, DMX512

-Pan movement range: 540º

-Tilt movement range: 270º

-Dimmer: linear 0-100%

-Frost filter: Yes

-Focus: electronic

-Display: 1.77″ TFT color touchscreen

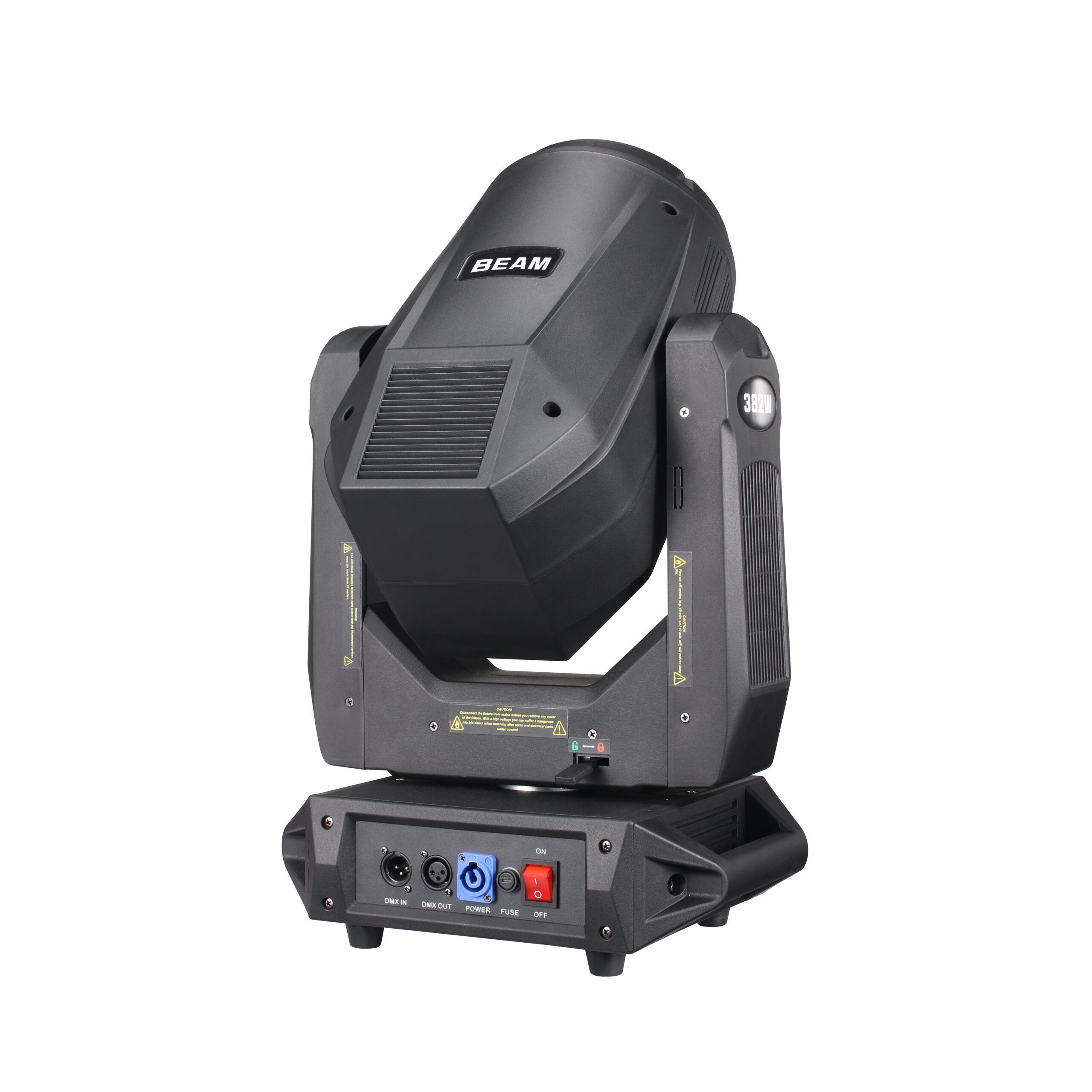

-DMX connectors: 3-pin XLR type (in/out)

-Power connector: powercon

-Cooling : Temperature controlled fan

-Net weight: 19 kg

-Gross weight :21kg

-Package size :50x48x60 cm

Additional information

Exploring The Product

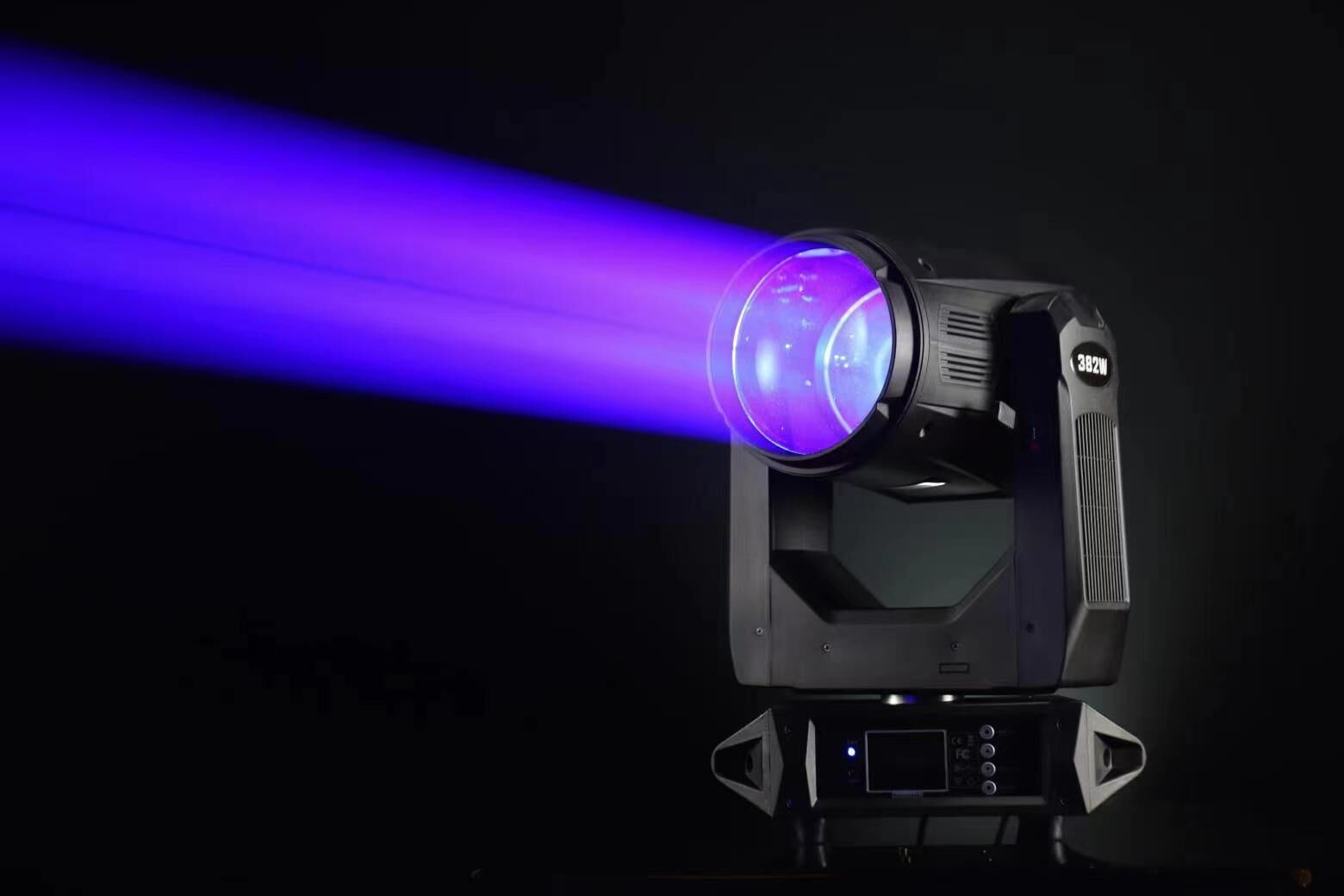

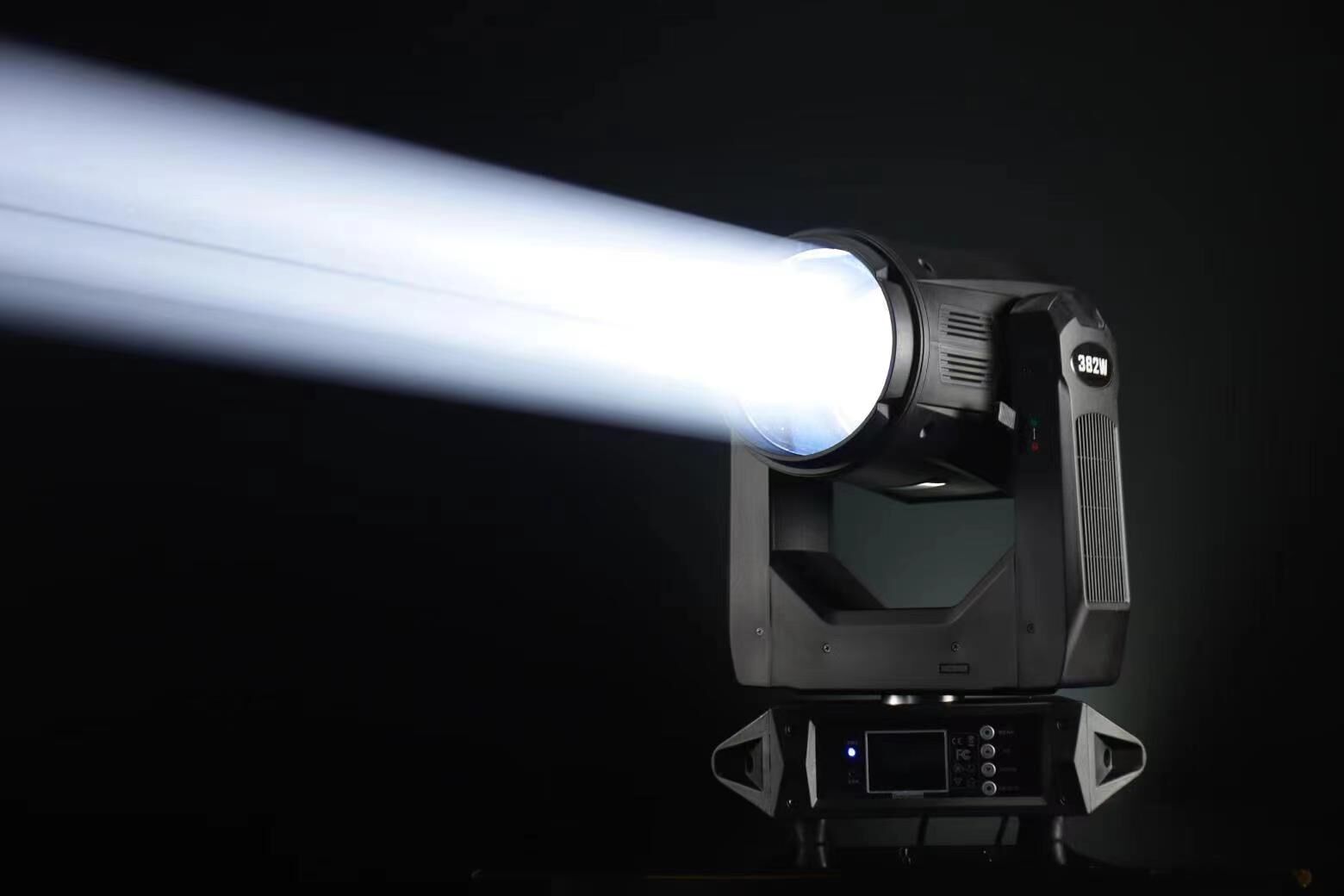

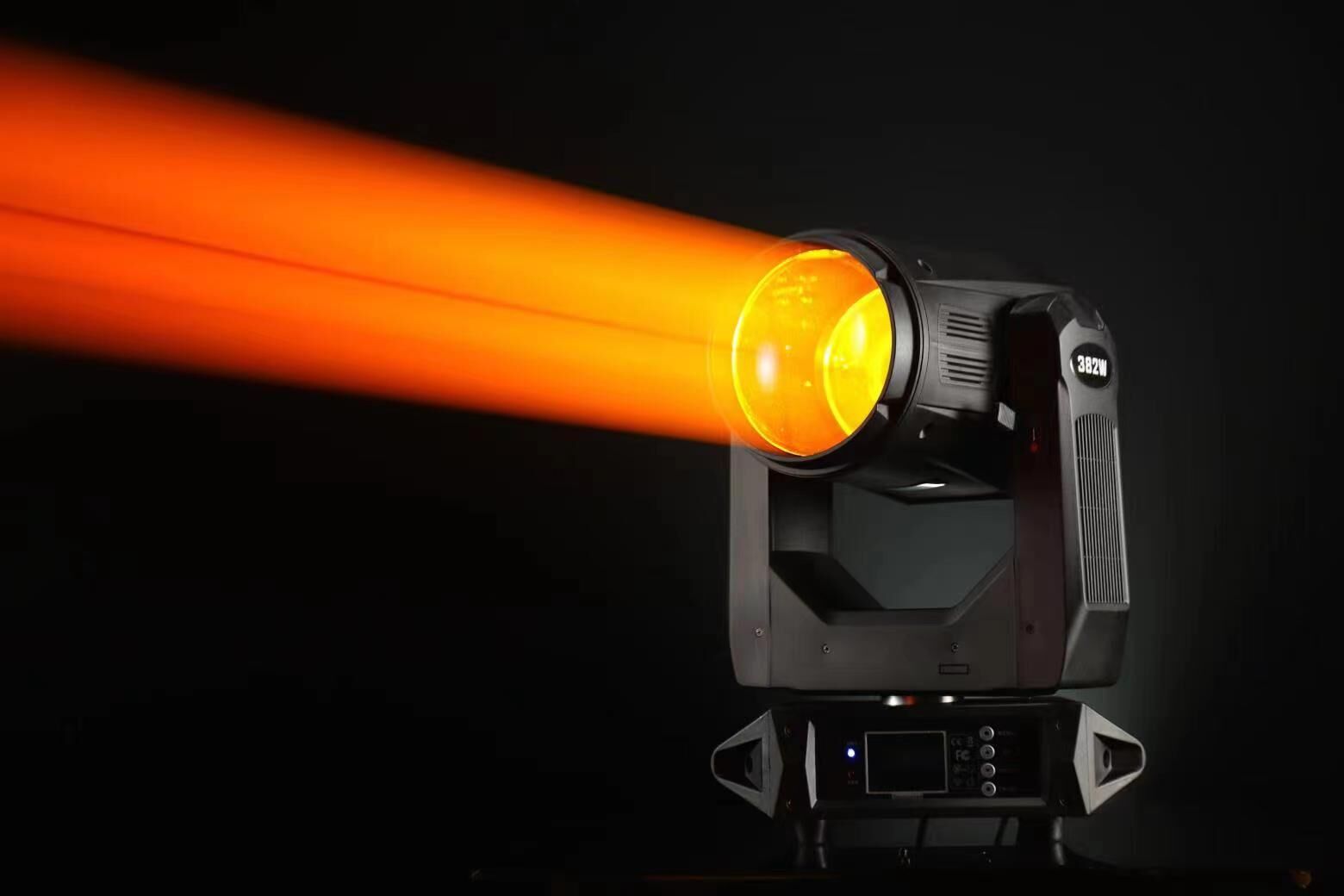

The Loong 382w Beam moving head has a very bright output due to the use of the 382W high intensity discharge bulb. The moving head is equipped with a colour, frost, gobo and prism effect wheel for ultimate control; the gobo wheel is provided with 13 different gobos + open and the colour wheel with 14 colours + open. Together with the motorized Prism 1 :8 facet prism and Prism 2 : 6+12+24 Honeycomb prism rotating prism it can create a wide range of spectacular light effects. The Prism King 14R moving head works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 18 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost lens, rotation prism, motorized focus and mechanical dimmer. Simple operation and easy to adjust.
