LED Strobe Pixel Bar Light IP

TECHNICAL SPECIFICATIONS

Light Source

-Light Sources:

• 672 x 0.5W RGB LED(32 x RGB LED zones can be controlled individually)
• 112 x 3W CW LED(16 x CW LED zones can be controlled individually)

-Beam Angles:

• RGB Beam Angle: 101°
• CW Beam Angle: 108°

-Field Angles:

• RGB Field Angle: 149°
• CW Field Angle: 152°

Optical System

• Advanced optical design for seamless effects
• SMART Glass technology for DMX controllable frost effects

Control

• 4 button menu with OLED display
• Protocols: DMX512, Art-Net, sACN
• Control channels:  7/15/17/21/33/39/65/68/70/112/117 or 121 selectable
• 0 – 100% dimming
• 4 dimming curves: Linear, square law, inverse square law and S-curve

Electrical and Connectors

• Input Voltage Range: 100-240VAC, 50/60Hz
• Power consumption: 420W
• Power In/Out: Waterproof connections (TRUE1 type)
• Data In/Out: Waterproof 3-pin or 5-pin XLR connectors

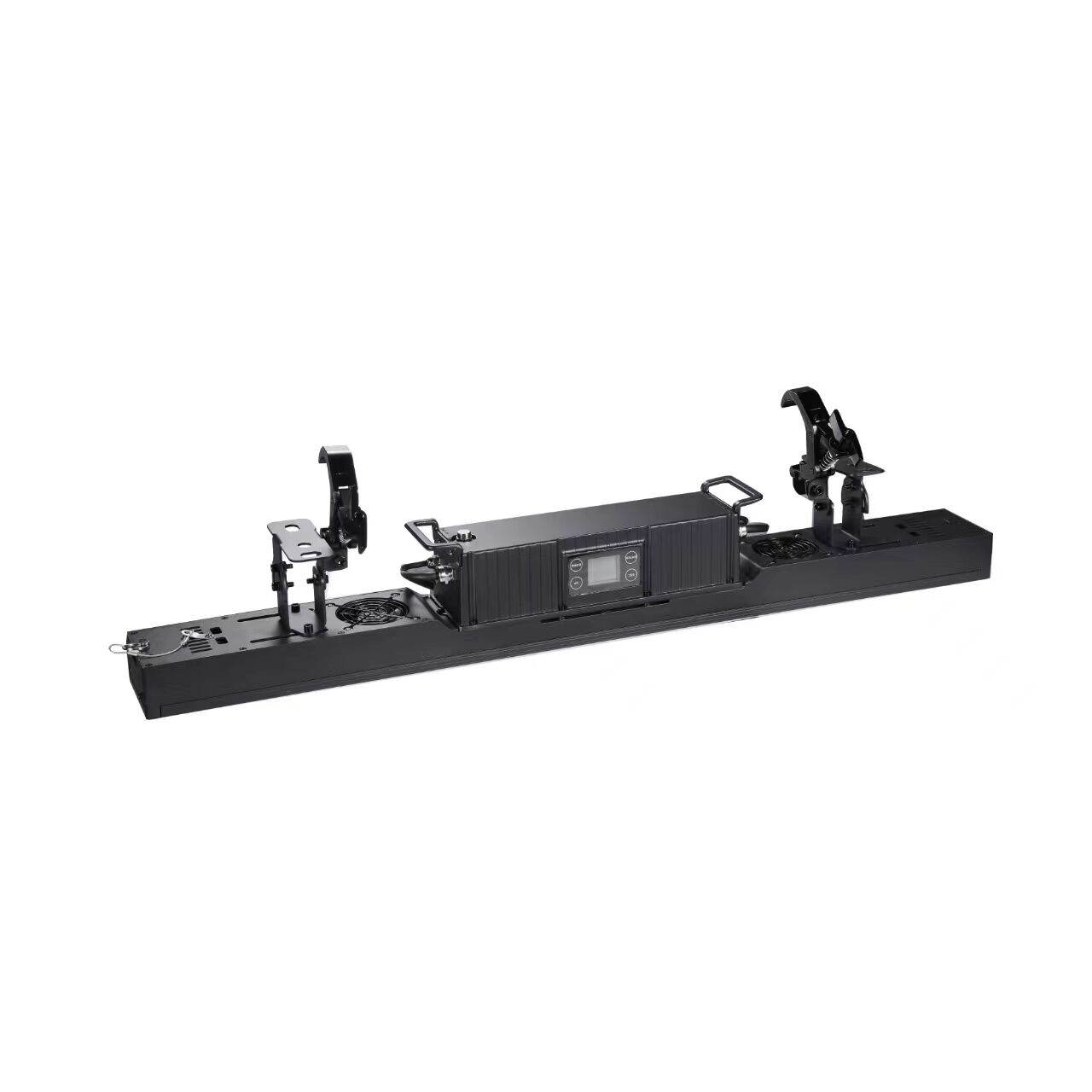

• Supplied with installation brackets
• Multiple units can be seamlessly jointed tool-free
• Bracket allows for multiple rigging or floor standing applications
• Quick release omega clamps included

Fixture Specification

• IP rating: IP65
• Dimensions (H x W x D): 170 x 1000 x 114mm
• Weight: 5.9kg
