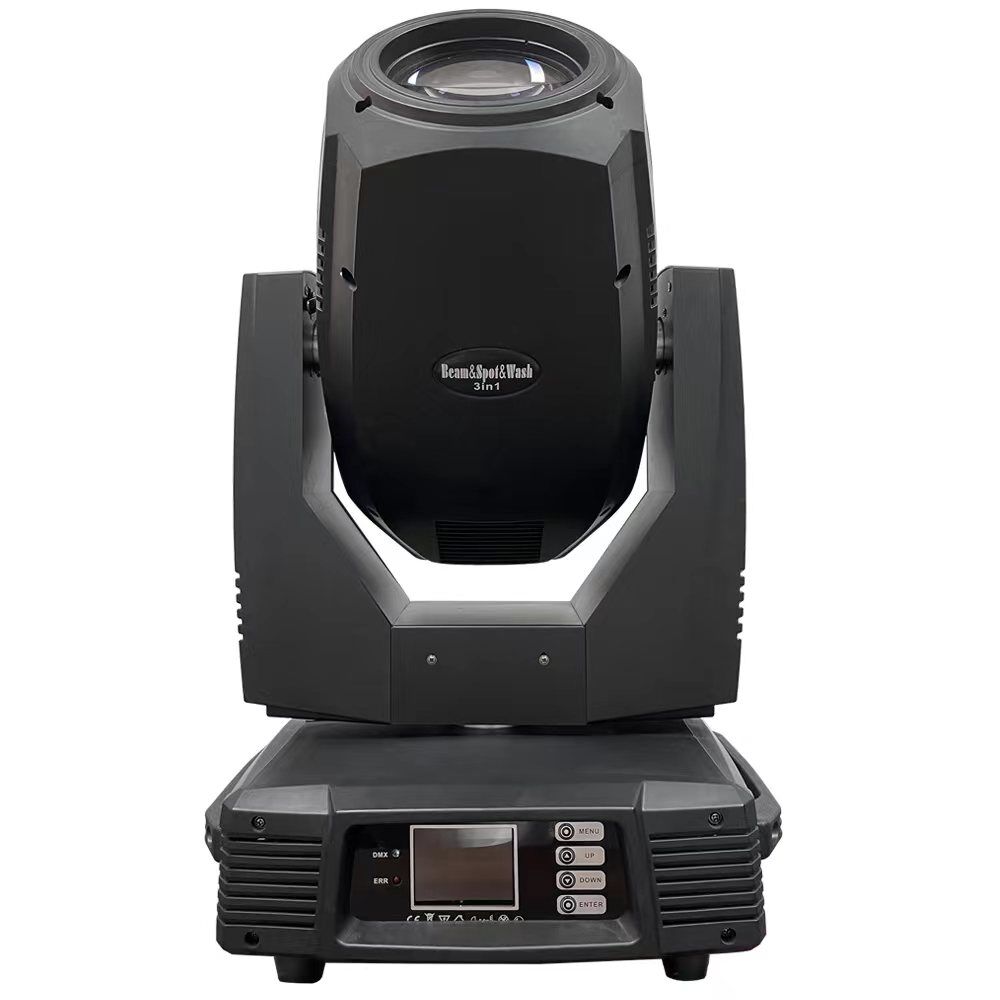

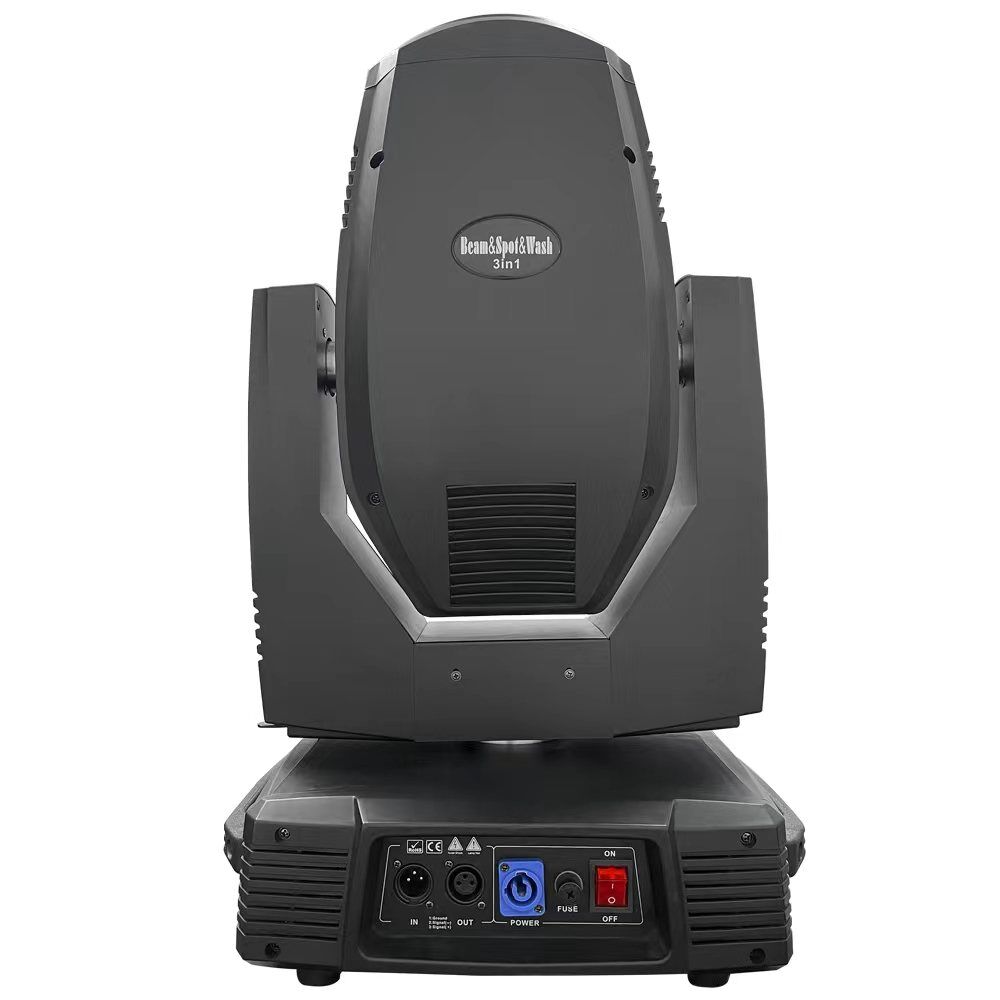

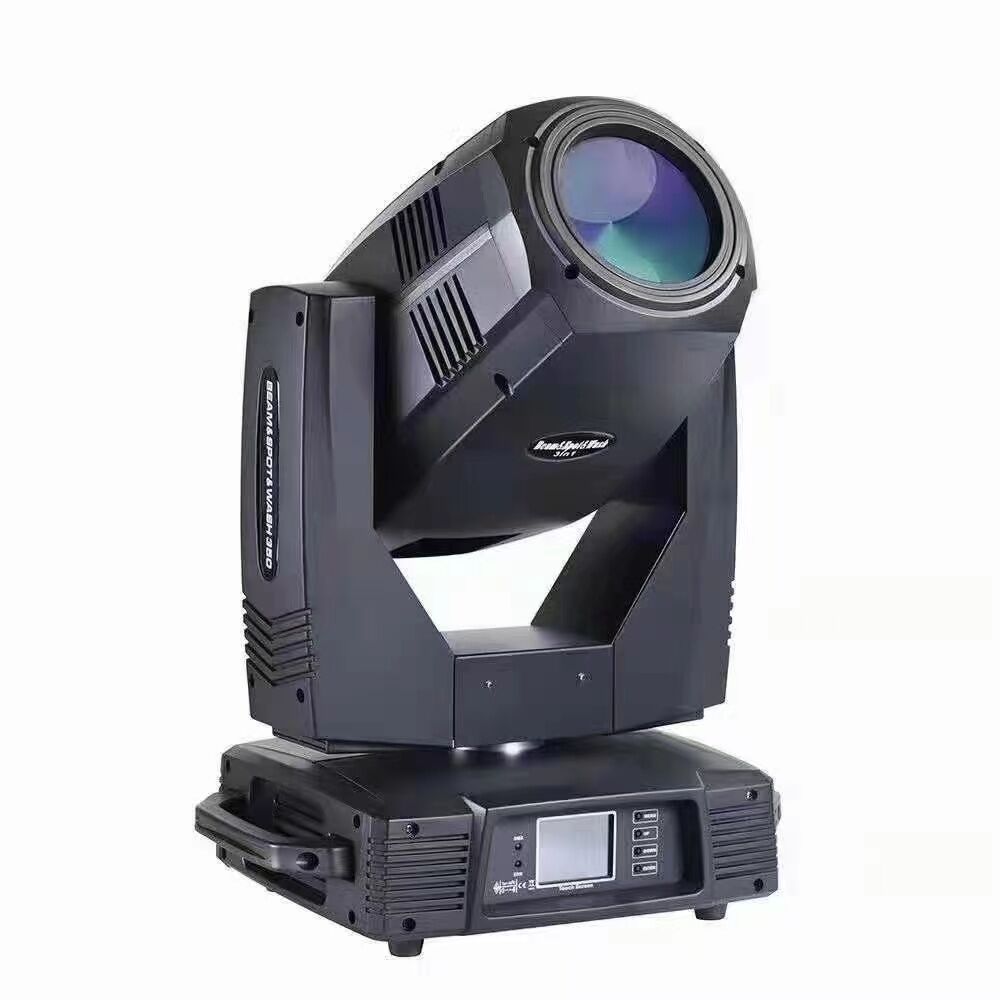

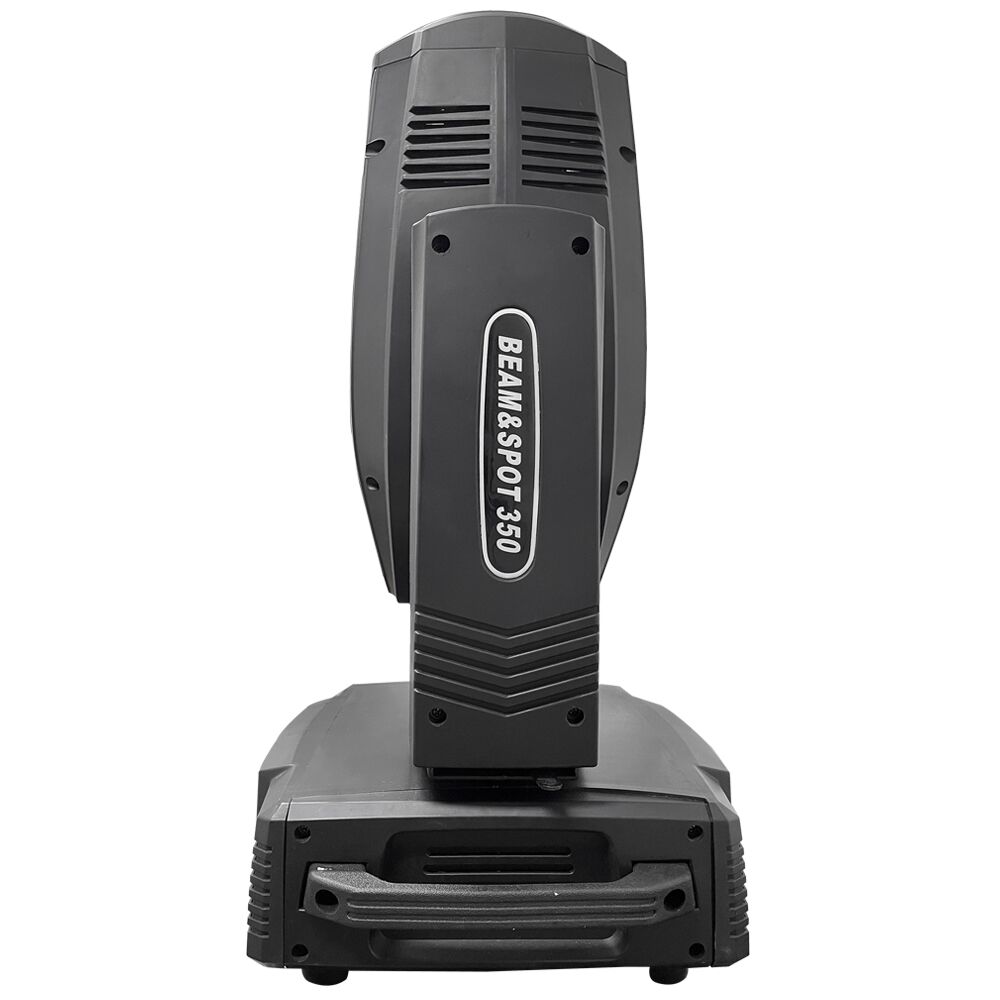

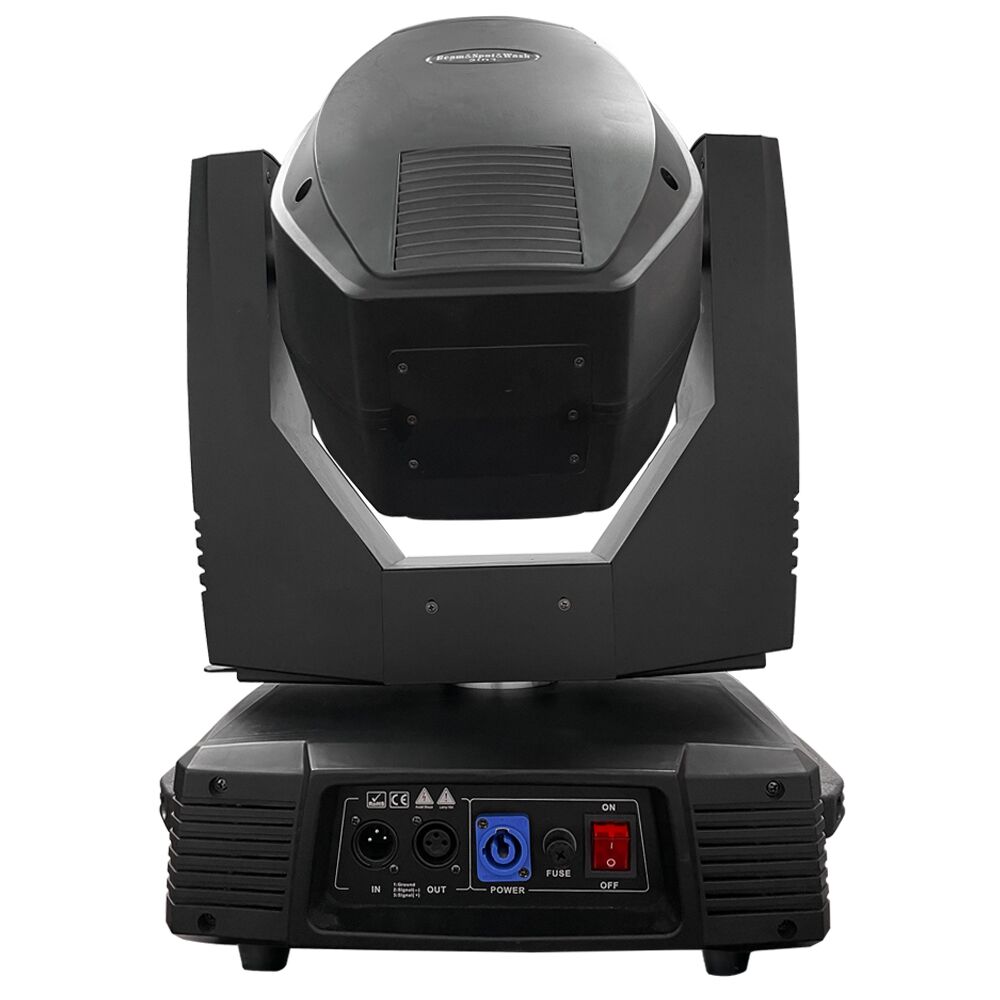

LOONG 17R 350W BEAM/SPOT/WASH 3IN1 MOVING HEAD

Categories MOVING HEAD LIGHTS, Moving Head-BSW Tag Moving Head Hybrid

TECHNICAL SPECIFICATIONS:

-Light source : MSD 17R 350W bulb

-Colour wheel : 13 colours + open

-Dispersion: Beam 5°

-Dispersion: Spot 17°

-Dispersion: Wash 17- 43°

-Zoom : Yes

-Illuminance : 145.000lx@10m

-Head movement: Pan 540

-Head movement: Tilt 270

-Static gobo: Quantity 14

-Rotating gobos: Quantity 9

-Gobo shake : Yes

-Interchangeable gobos : Yes

-Gobo dimensions : 15.8mm

-Prism 1 : 6 Facet

-Prism 2 : 8 Facet

-Frost filter : Yes

-Flash rate per second : 1 – 13Hz

-Modes : Automatic programs, DMX, Manual, Master/Slave

-Sound to light mode : Yes

-DMX channels : 16/20

-DMX connection : 3-pin XLR

-Display: LCD

-IP rating : IP 20

-Cooling : Temperature controlled fan

-Power plug : Power-connector

-Power consumption : 3.2 – 1.8A

-Power supply : 100-240VAC 50/60Hz

-Dimensions (L x W x H) : 420 x 300 x 635mm

-Net weight : 20.6 kg

Additional information

Exploring The Product

Description :

-3-in-1: Beam Spot Wash

-350W 17R High Intensity discharge bulb included

-Gobo Wheel : 14 static gobos + 9 rotating replaceable glass gobos + open

-Colour Wheel: 13 Colours + open

-Gobo shake effect

-Frost effect filter

-Prisms: rotatable 6 facet prism + rotatable 8 facet prism

-Motorized focus

-Mechanical shutter and adjustable speed strobe effect (1-13 x per sec)

-Dimmer: 0 – 100% linear dimmer

-16 or 20 DMX Channels

-DMX, Auto mode and Master/Slave function

-Automatic pan/tilt correction

-Pan: 540° and Tilt: 250° Movement

-With pan/tilt lock mechanism

-Pan/Tilt Resolution: 16bit

-Control panel with LCD display

-Battery function (mains power not required for fixture setup)

-DMX in/output via 3-pin XLR

-Powerconnector input/output

-Quick lock omega clamp included (2x)

-DMX cable included

-Powerconnector cable included
