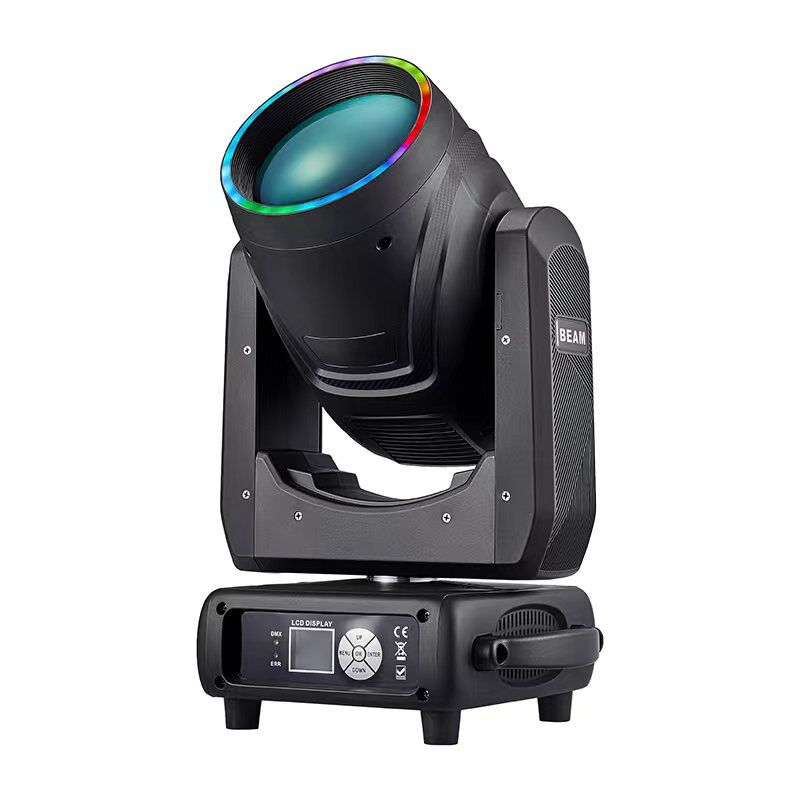

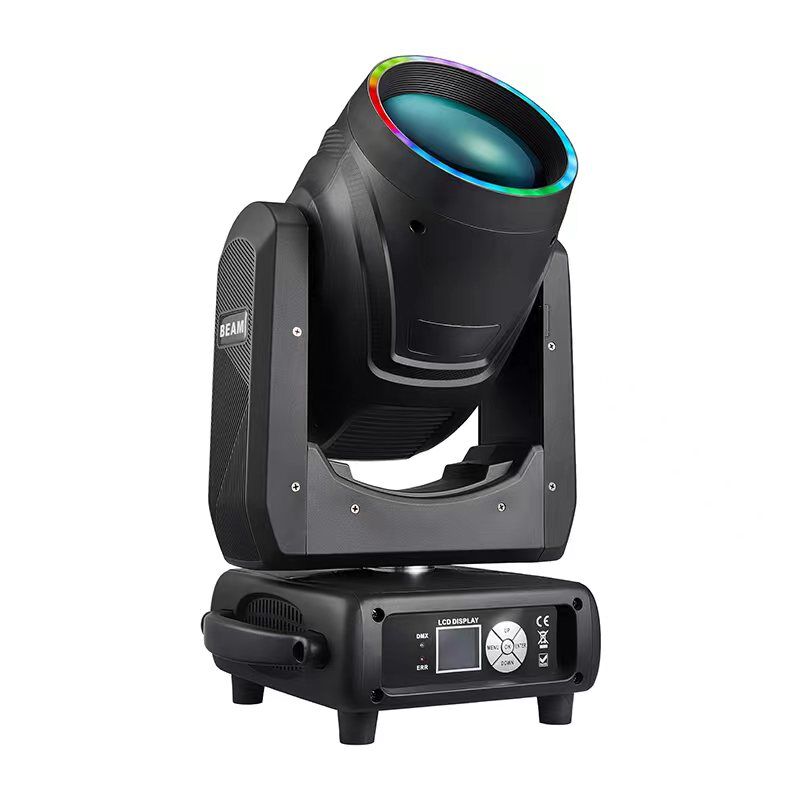

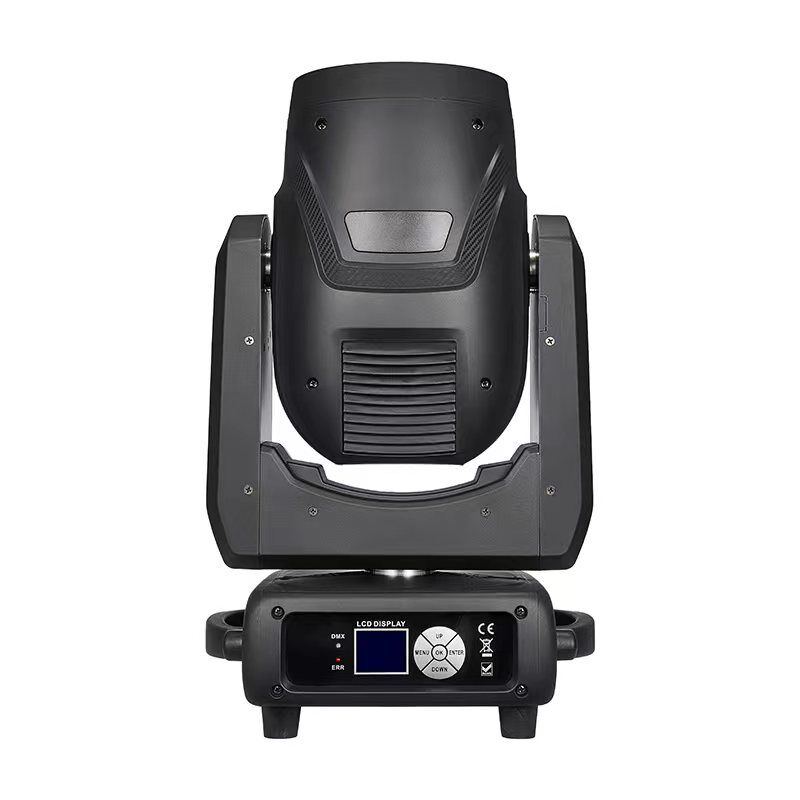

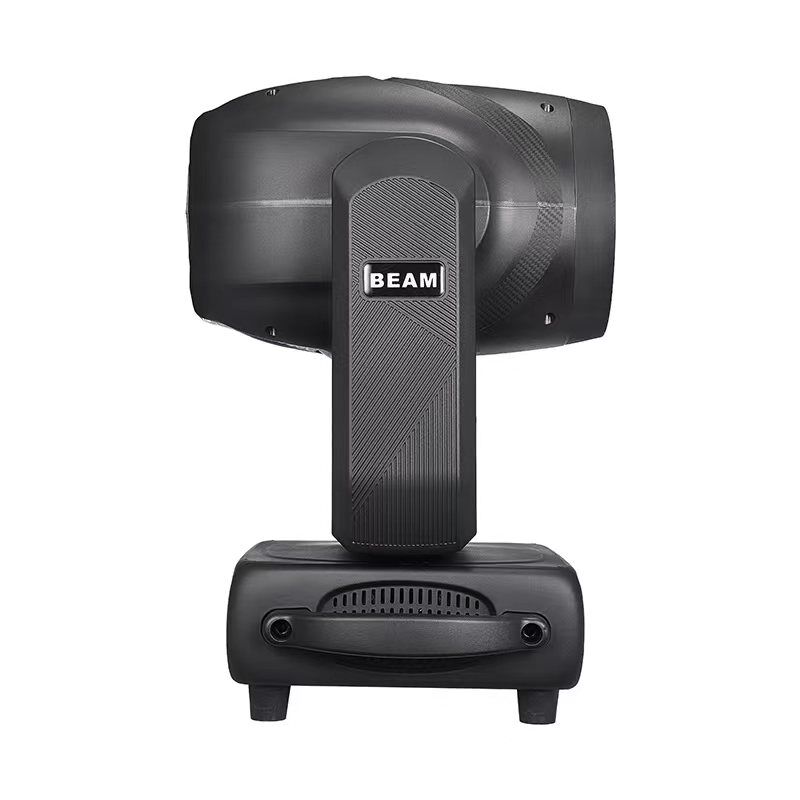

Loong 320w Beam Moving Head

Categories MOVING HEAD LIGHTS, Moving Head-Beam Tag Moving Head Beam

TECHNICAL SPECIFICATIONS:

-Power supply: AC 100-240V, 50/60 Hz

-Light source : MSD 320W bulb

-Color temperature: 8500K

-Ballast: electronic ballast

-Beam angle : 0°-4°

-Gobo wheel: 17 gobo + White

-Color wheel: 14 colors + white light with rotating rainbow effect

-Prisms : rotatable 16 facet prism + rotatable 56 facet prism

-Prisms can be overlapped rotated independently in both directions

-Number of DMX channels: 16 channels

-Degree of protection: IP20

-Operating modes: auto, sound, master-slave, DMX512

-Pan movement range: 540º

-Tilt movement range: 270º

-Dimmer: linear 0-100%

-Mechanical shutter and adjustable speed strobe effect (1-12 x per sec)

-Frost filter: Yes

-Focus: electronic

-Display: LCD

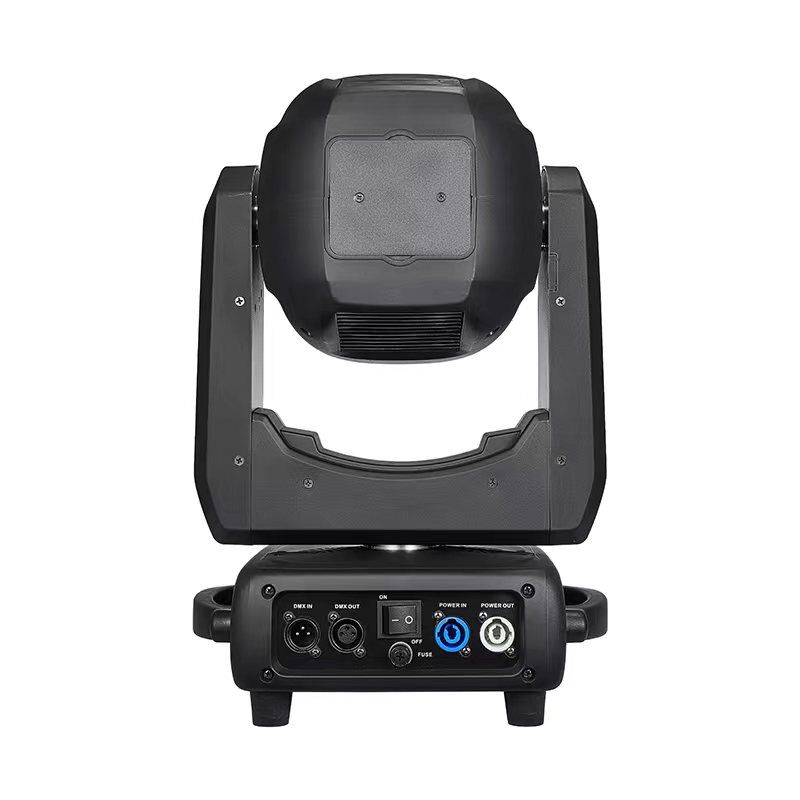

-DMX connectors: 3-pin XLR type (in/out)

-Power connector: powercon

-Cooling : Temperature controlled fan

-Net weight: 16 kg

-Gross weight :19kg

-Product size : 320x220x580 mm

Additional information

Exploring The Product

The Loong 320w Beam moving head has a very bright output due to the use of the 320W high intensity discharge bulb. The moving head is equipped with a colour, frost, gobo and prism effect wheel for ultimate control; the gobo wheel is provided with 13 different gobos + open and the colour wheel with 14 colours + open. Together with the motorized Prism 1 :16 facet prism and Prism 2 : 56 facet prism rotating prism it can create a wide range of spectacular light effects. The Loong 320 moving head works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 16 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost lens, rotation prism, motorized focus and mechanical dimmer. Simple operation and easy to adjust.
