Pixel Bar 100W Warm White & RGB 3in1 LED

Category LED BAR WALL WASHER

Model : BAR123

Light Source:

12pcs 3W warm white lamp beads + 156 LED 0.5W 5730 white lamp beads + 96 LED 0.2W 5050 RGB lamp beads

Power Consumption:100W

Voltage: AC110-240V, 50/60Hz

DMX Channel : 5/12/14/75CH

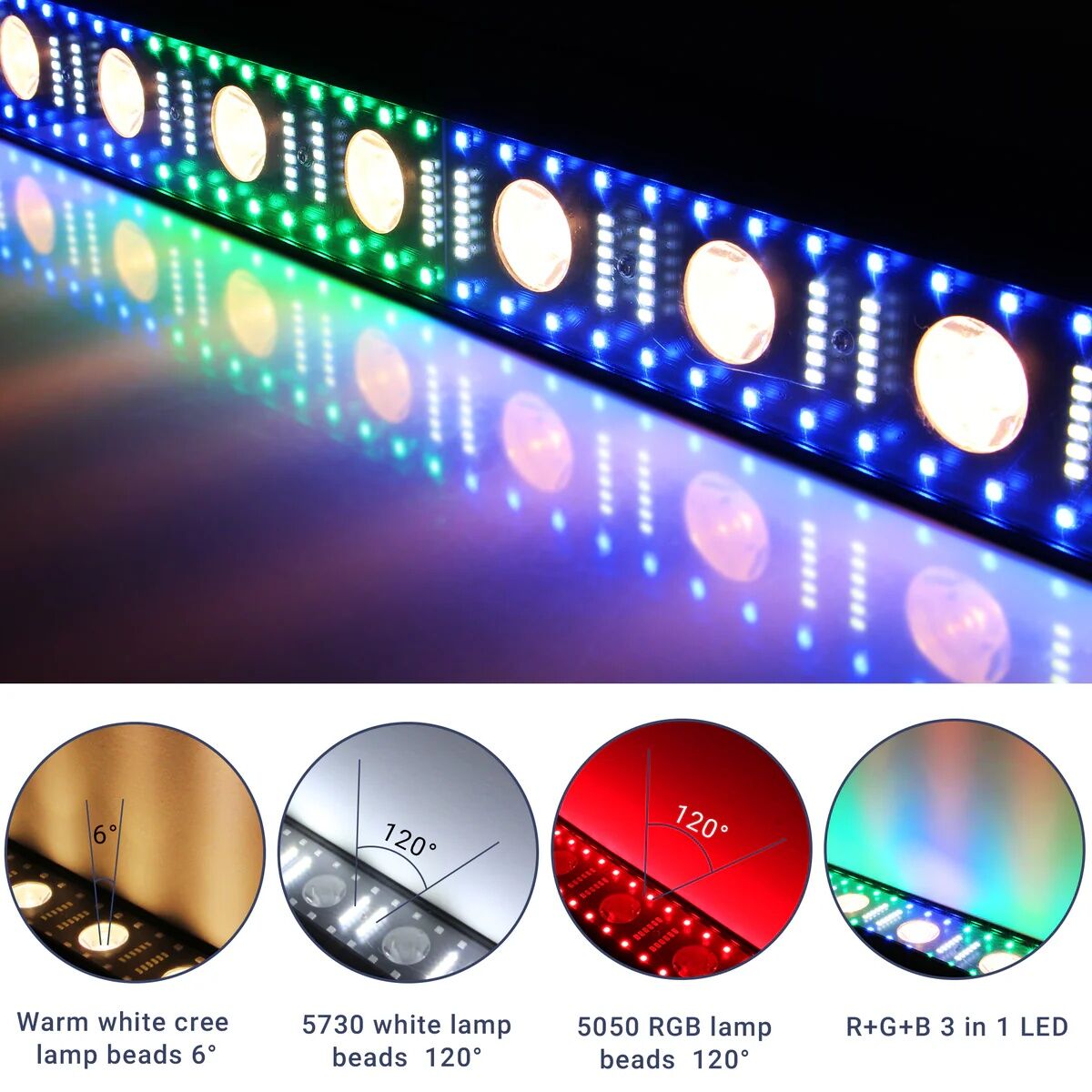

Beam Angle: warm white beads: 6° ; 5730 white beads & 5050 RGB beads: 120°

Control Zone: 12 individually controlled sections (3leds per section)

Built-in Programs : 35

Dimmer: 0-100% linear dimming

Strobe: 0-25 times / sec

Power Linking: 5 units @120V; 10 units @ 230V

DMX Connectors: 3-pin XLR

Cooling System: Convection (no fan inside)

Operation: Auto, DMX512, Sound, Master/Slave

Dimension: 100×12.5x7cm

Weight: 3.7KG

Additional information

Exploring The Product

Elevate your event lighting with our cutting-edge Pixel Control DJ Light Bar. This linear powerhouse combines precision and brilliance with its dynamic LED array: 12 warm white LEDs for striking beam effects, 156 high-output 5730 white LEDs, and 96 vibrant 5050 RGB tri-color LEDs for mesmerizing pixel mapping.

Take creative control with tri-sectional zones, perfect for crafting captivating light beams, fluid color chases, and immersive lighting designs. The intuitive 4-button onboard display gives you instant access to 35 pre-programmed lightshows, ensuring a seamless experience for any event.

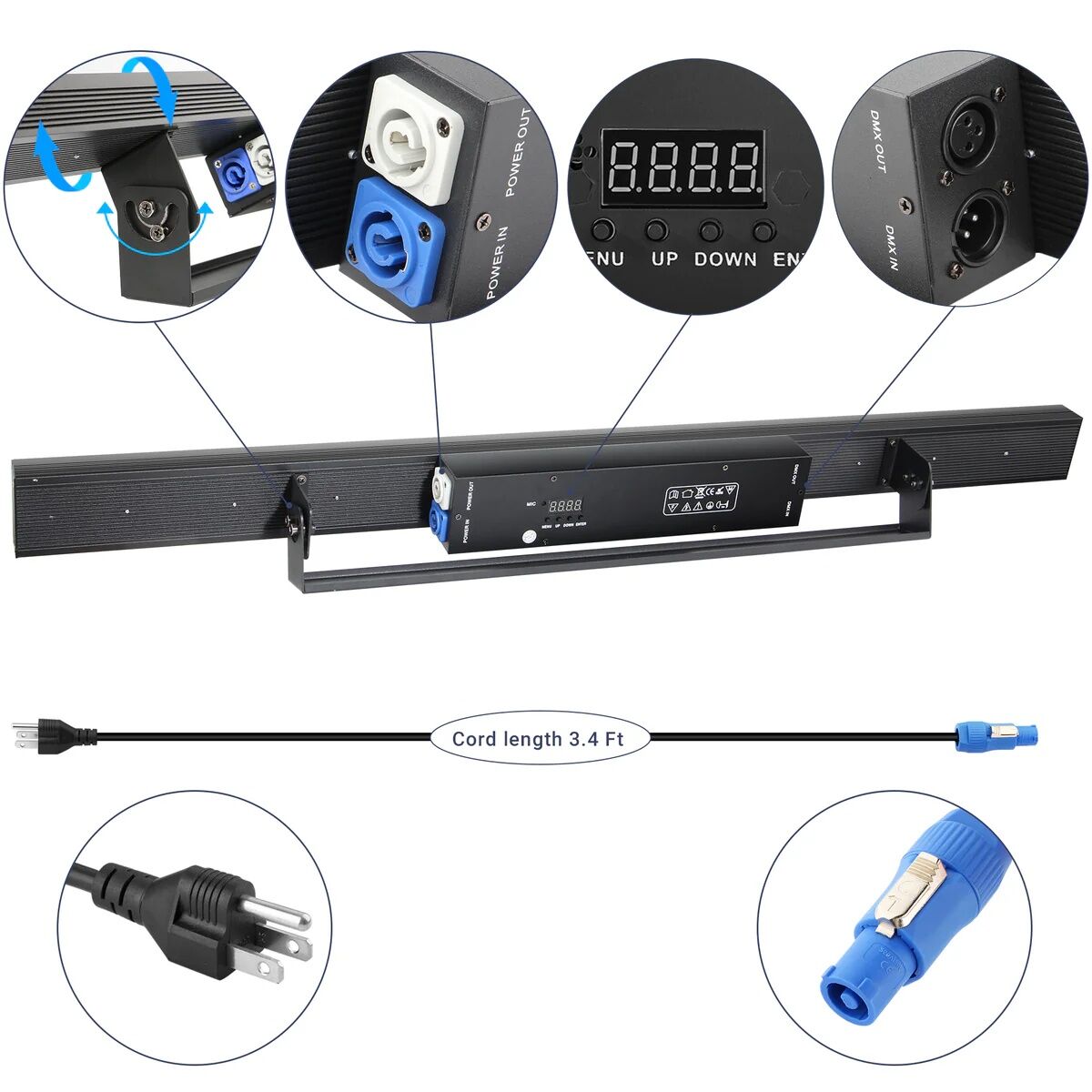

Designed for versatility, the adjustable bracket allows horizontal or vertical positioning, making it easy to tailor the lighting to your venue’s unique setup. With integrated DMX and power linking ports, connecting multiple fixtures is a breeze, enabling synchronized, large-scale displays.

Unleash a world of vibrant, customizable lighting effects and transform every event into an unforgettable visual spectacle!
