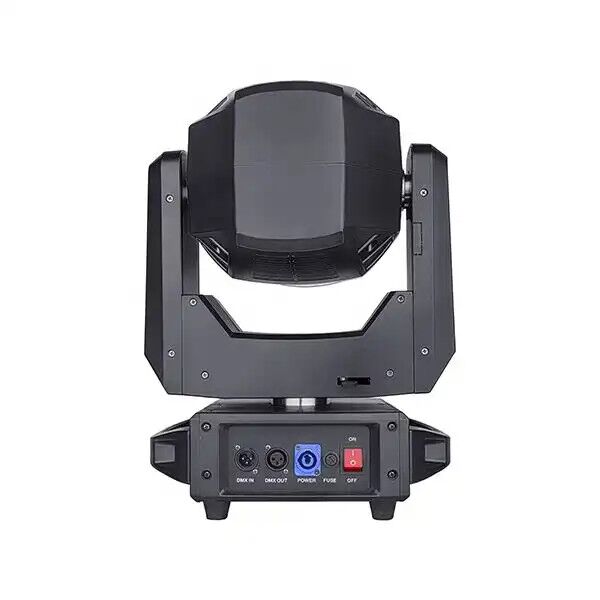

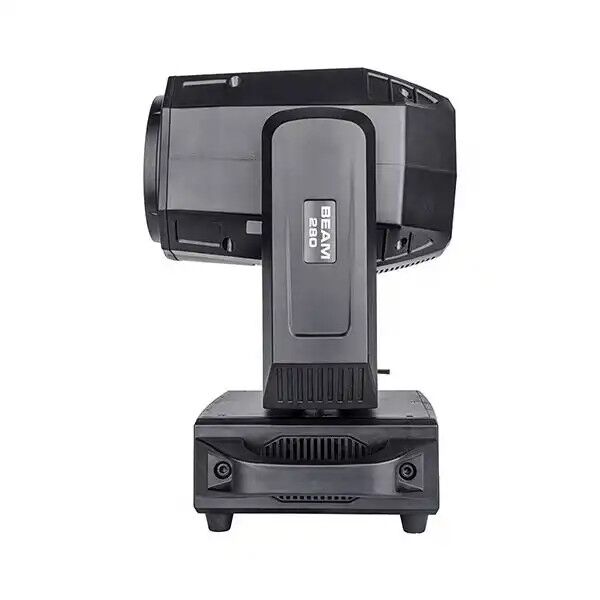

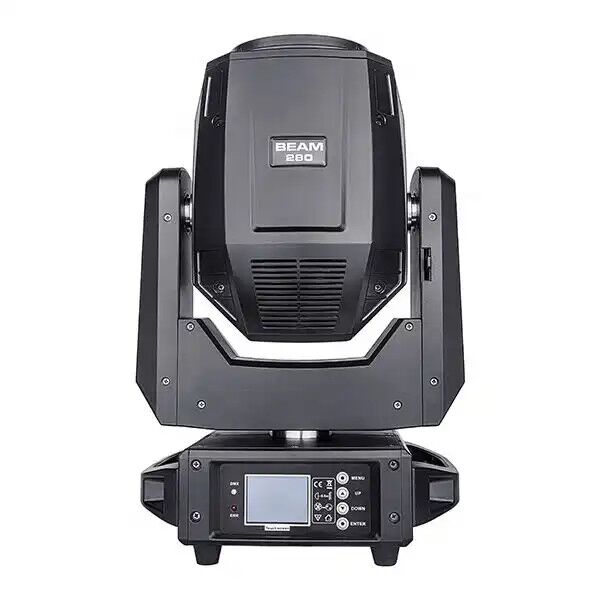

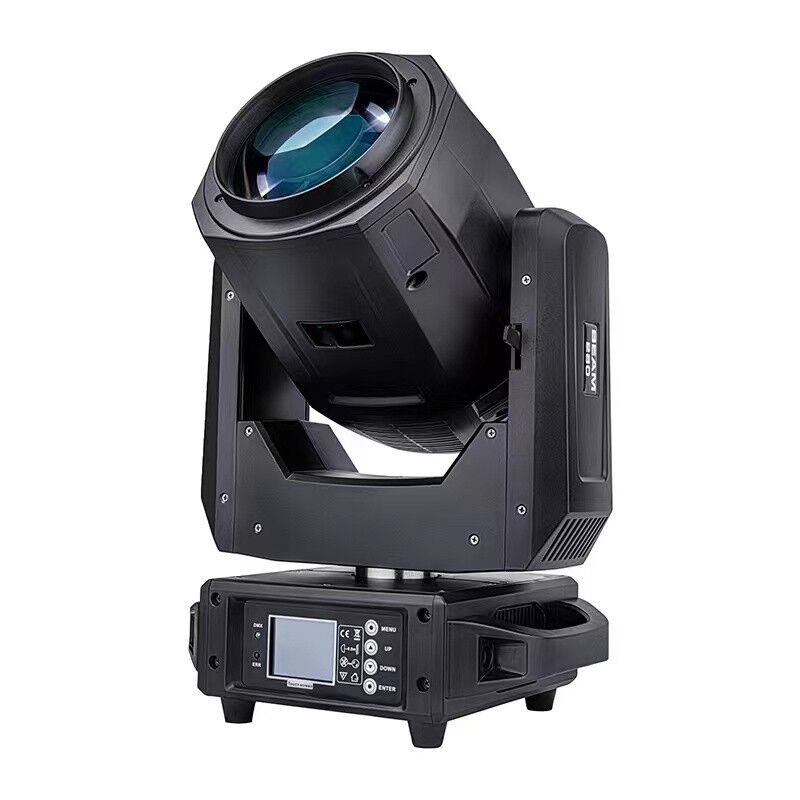

Prism King 295w 14R Beam Moving Head
Features:
R14 295w lamp
Two Prisms wheel ( total 6 prisms, 15 prisms effects. )
6 colors Rainbow Effects
Beam Angle: 1.8°
Frost:
13 fixed gobos (8 fixed gobos + 5 glass gobos) + Open
13 colors + Open
Touch color screen
PowerCon in/out
Light Source:
• 295W R14 LL MSD Discharge Lamp (1,500 hr.)
• Color temperature: 8000K
Color Wheel:
• 13 dichroic colors + white (Includes CTO, CTB & UV)
• Indexable color wheel for split colors
GOBO Wheel:
• 8 static GOBOs + 5 Glass colorful gobo +open
• GOBO Shake Effect
2 Prism Wheel:
• 6 Rotating prisms, Dynamic 3D Prism, 15 kinds of Combined Prisms effects;
. Wheel 1: 16-facet Circular +6 -facet Linear + 6&12 facet Dynamic 3D Prism
Wheel 2: 32- facet Circular + 6-facet Linear+ (8+16+24) facet Dynamic 3D Prism.
Control:
• 2 DMX Channel Modes: 14/18 Channels
• Touch Screen with 4-button function menu
• Control Mode: DMX512, Auto-Run, Sound Active
• 0-100% smooth dimming
• Various strobe speeds
Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)
Connections:
• DMX Connections: 3-pin or 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: Powercon In & Out
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 360W (@120V),
Dimensions & Weight:
• Dimension: 13.8” (L) x 13.5” (W) x 22.25” (H) / 350 x 343.5 x 565mm
• Weight: 34.1lbs. / 15.5kg.
What’s Included:
• Folding Clamps
• Power cable & Date Cables
The Prism King 14R moving head has a very bright output due to the use of the 14R 295W high intensity discharge bulb. The moving head is equipped with a colour, frost, gobo and prism effect wheel for ultimate control; the gobo wheel is provided with 13 different gobos + open and the colour wheel with 14 colours + open. Together with the motorized Prism 1 :16 facet prism & 6+12 prisms & linear prism and Prism wheel 2 : 32 facet prism & 8+16+24 prisms & linear prism rotating prism it can create a wide range of spectacular light effects. The Prism King 14R moving head works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 18 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost lens, rotation prism, motorized focus and mechanical dimmer. Simple operation and easy to adjust.
